first class edition

Experience pure listening – and not only through your ears …


Prof. Dr. Reinhard Flender, Director of the Institute for Cultural Innovation Research at the Hamburg University of Music und Theatre, describes the sonic chair as follows:

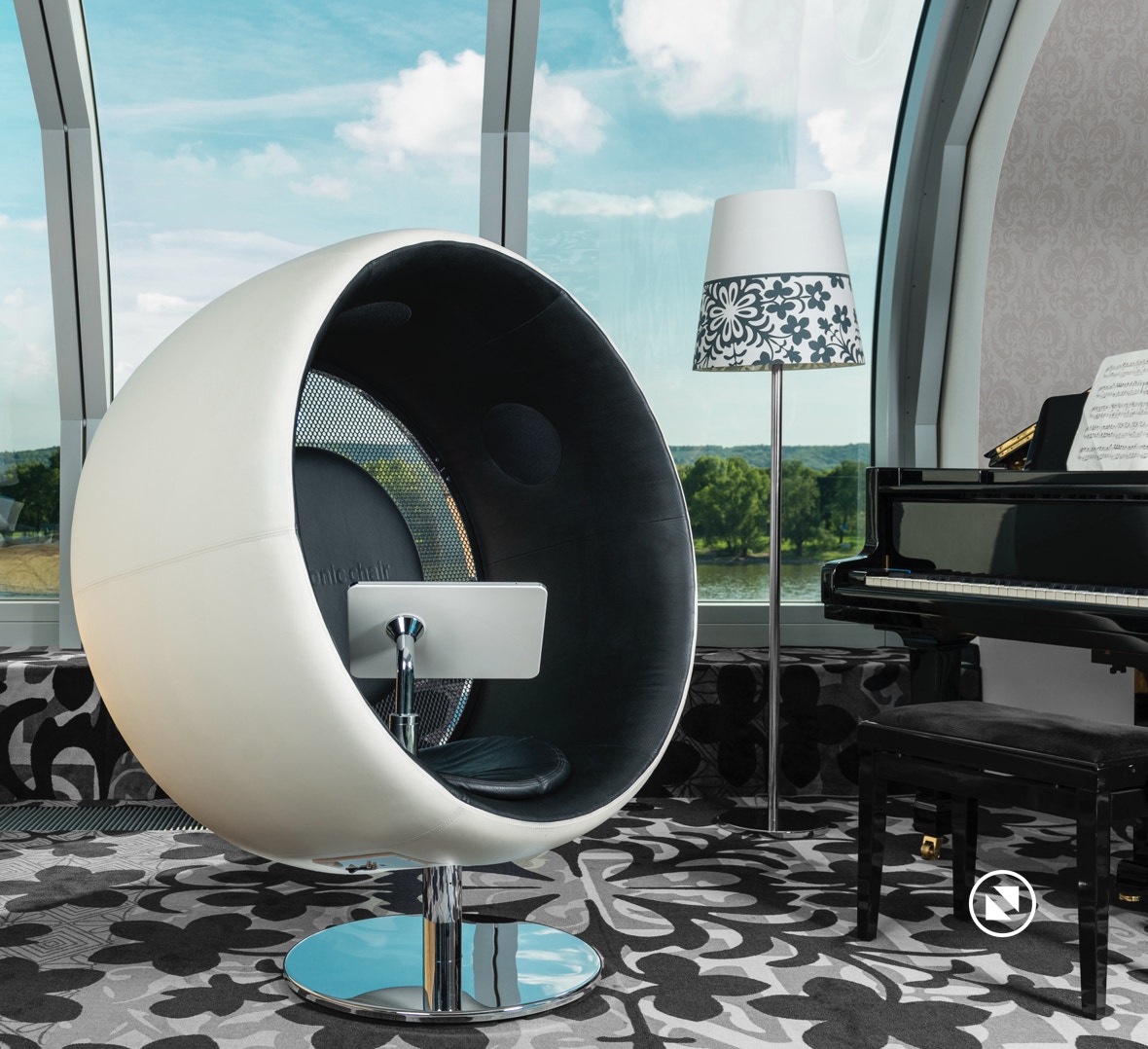

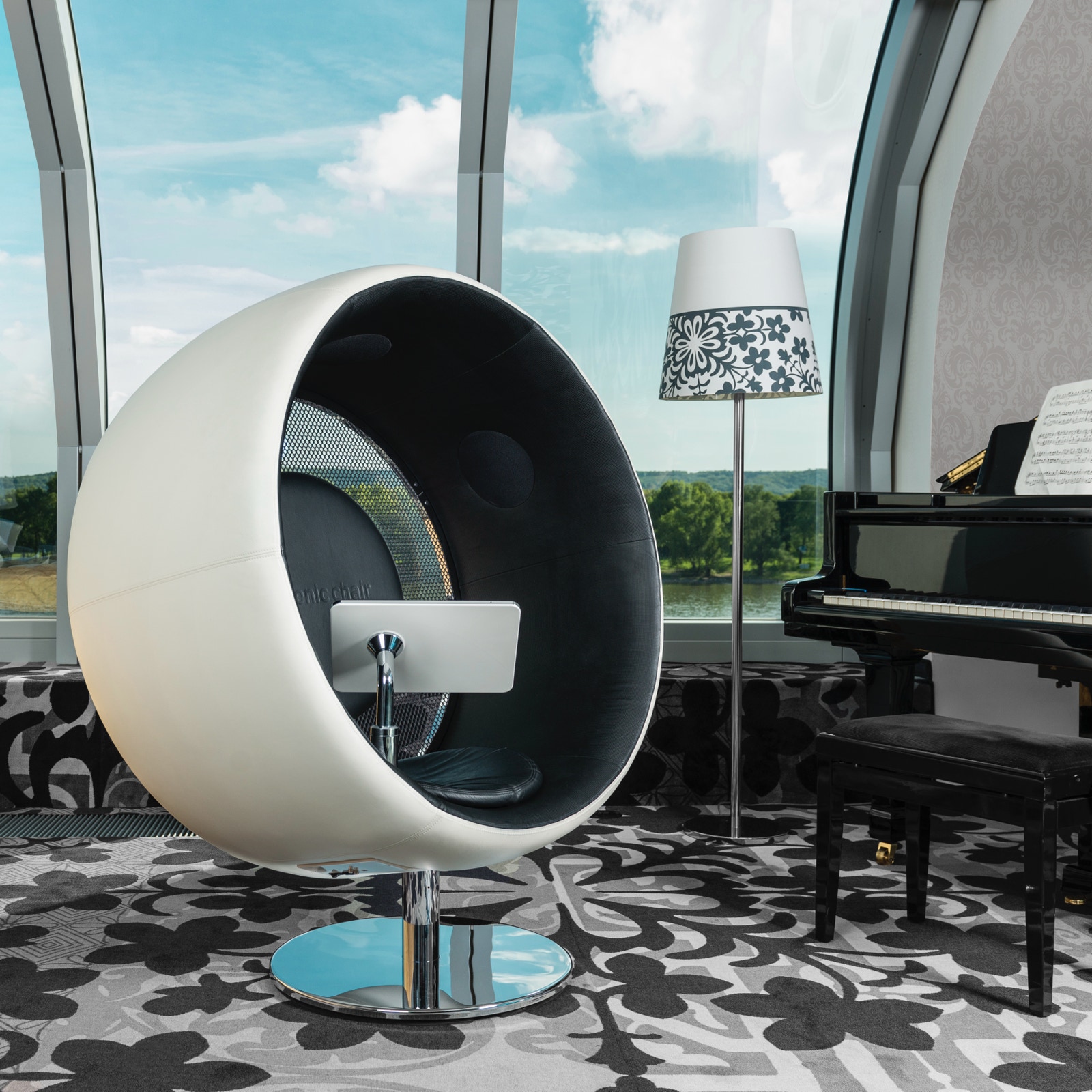

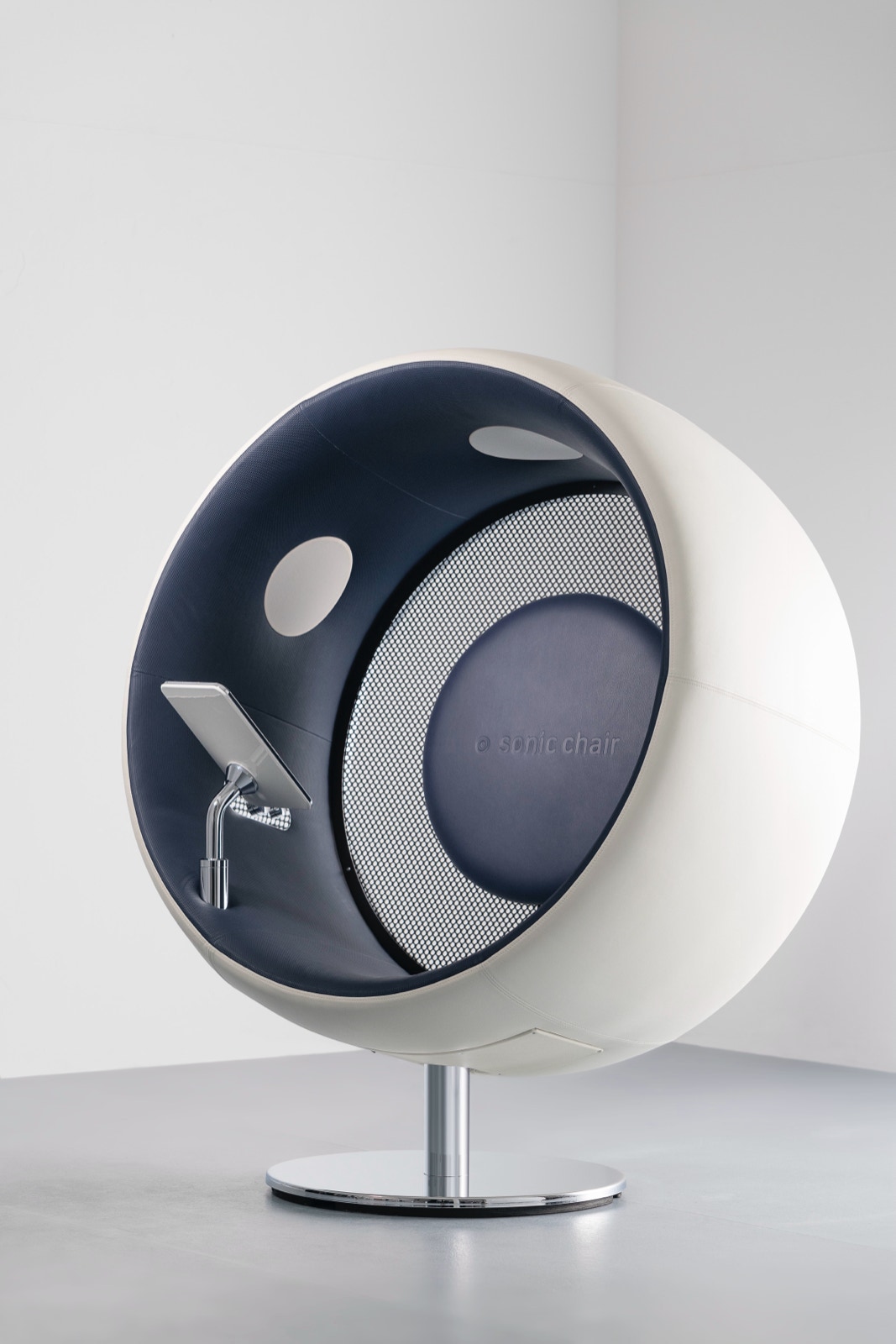

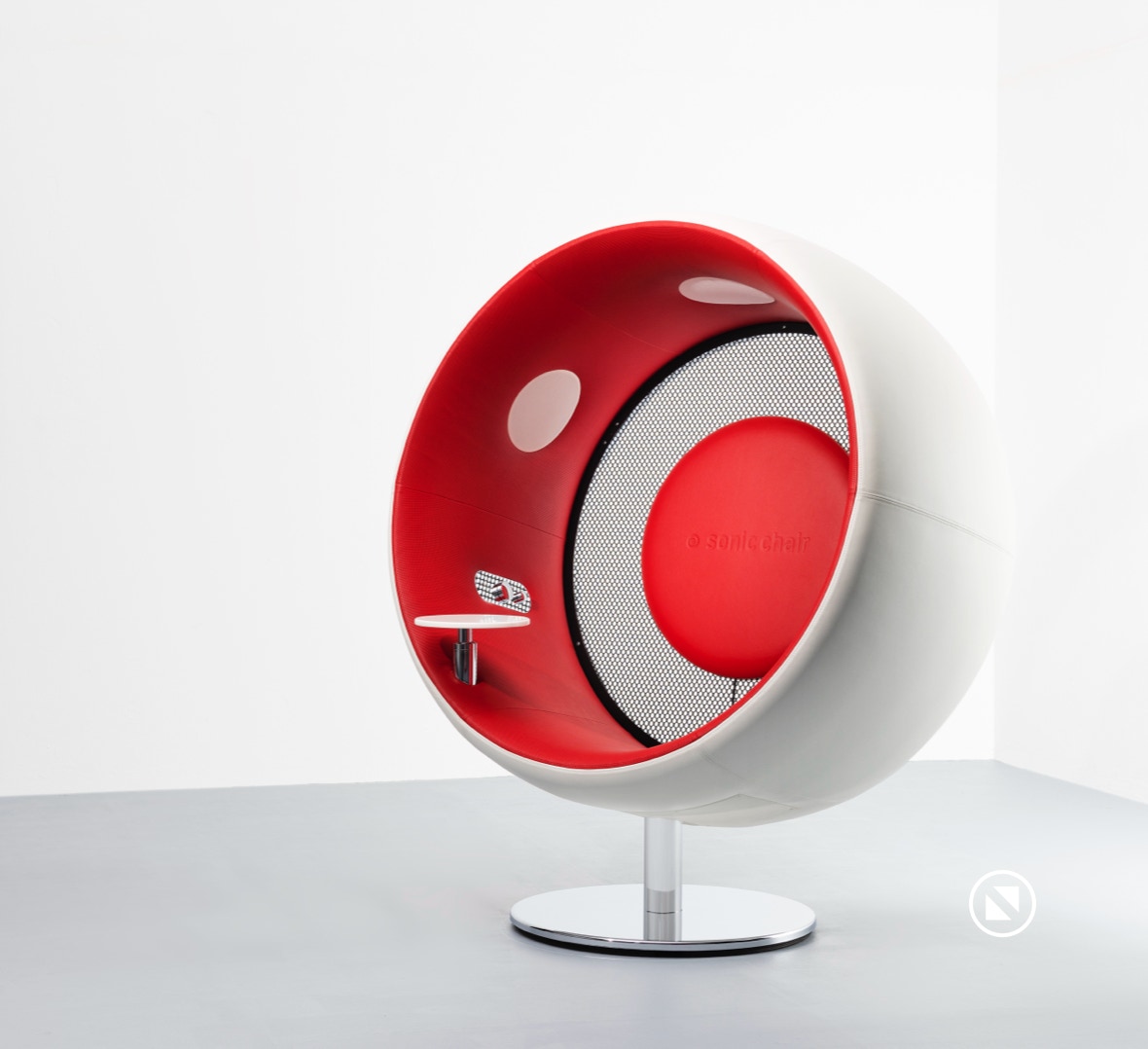

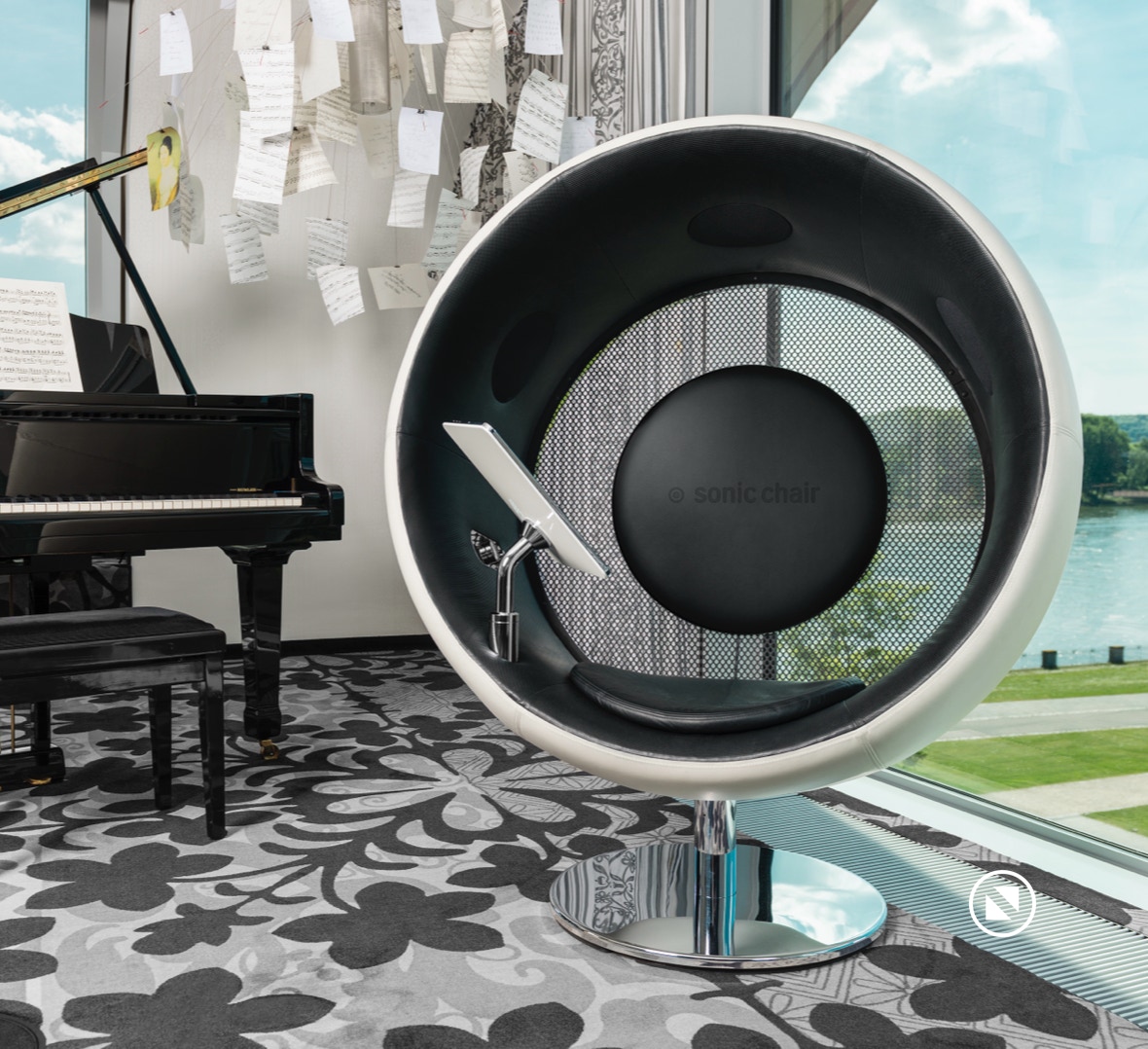

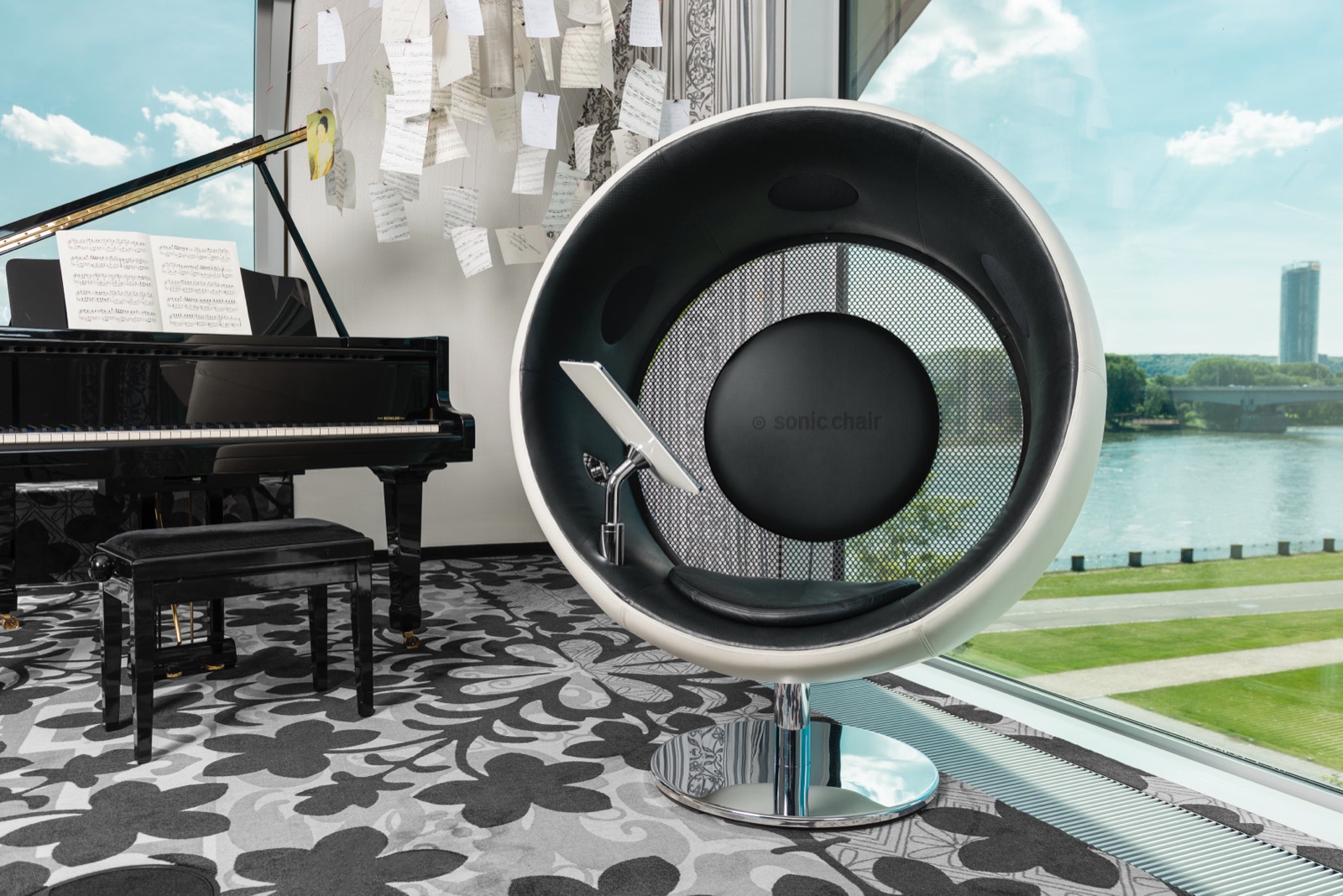

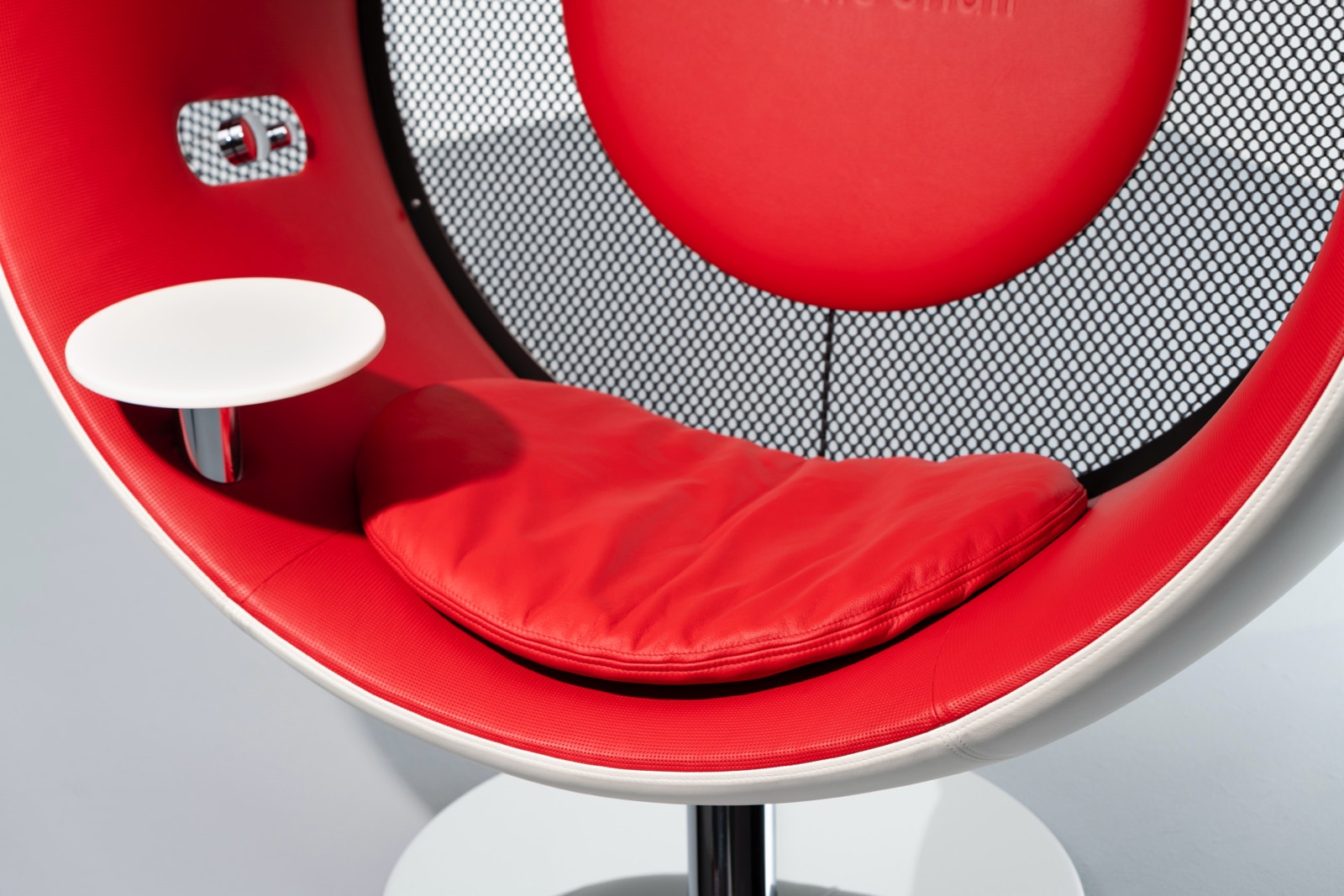

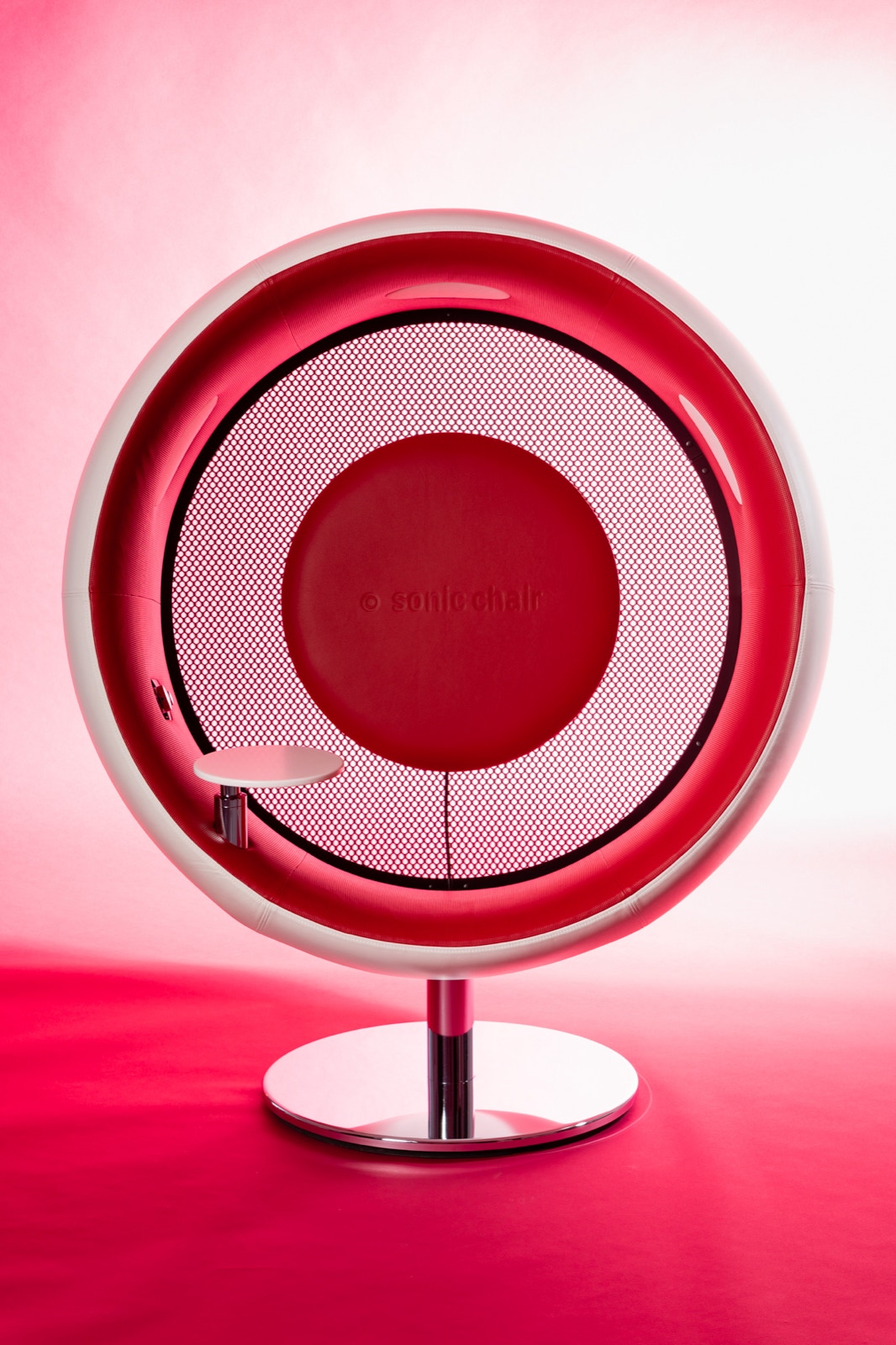

„The sound experience in this newly developed sonic chair is pure listening, not only with your ears, but, with your whole body. A specially developed structure-borne sound membrane serves as a backrest. You sit directly in the midst of the sound, encased in a round shell with particularly finely tuned internal acoustics. This sonic chair, which has been awarded a number of design prizes, is especially suited for listening to contemporary music. You make yourself comfortable, close your eyes, and prick up your ears. The finest hint of sound from an almost mutely bowed violin string in a Lachenmann String Quartett can be just as clearly heard as the highly facetted sound spectrum of a twelve-tone orchestral cluster by Ligeti.„

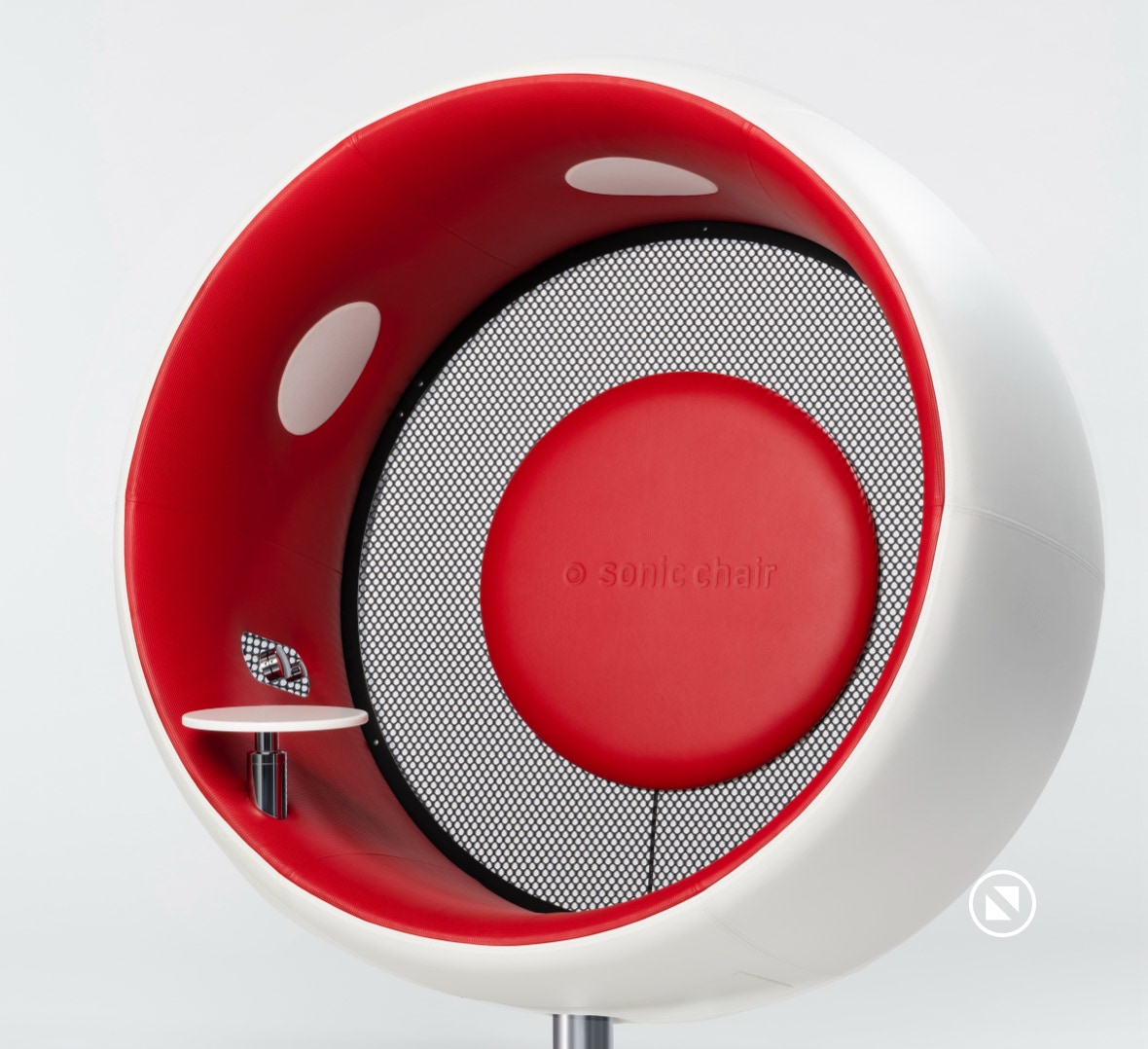

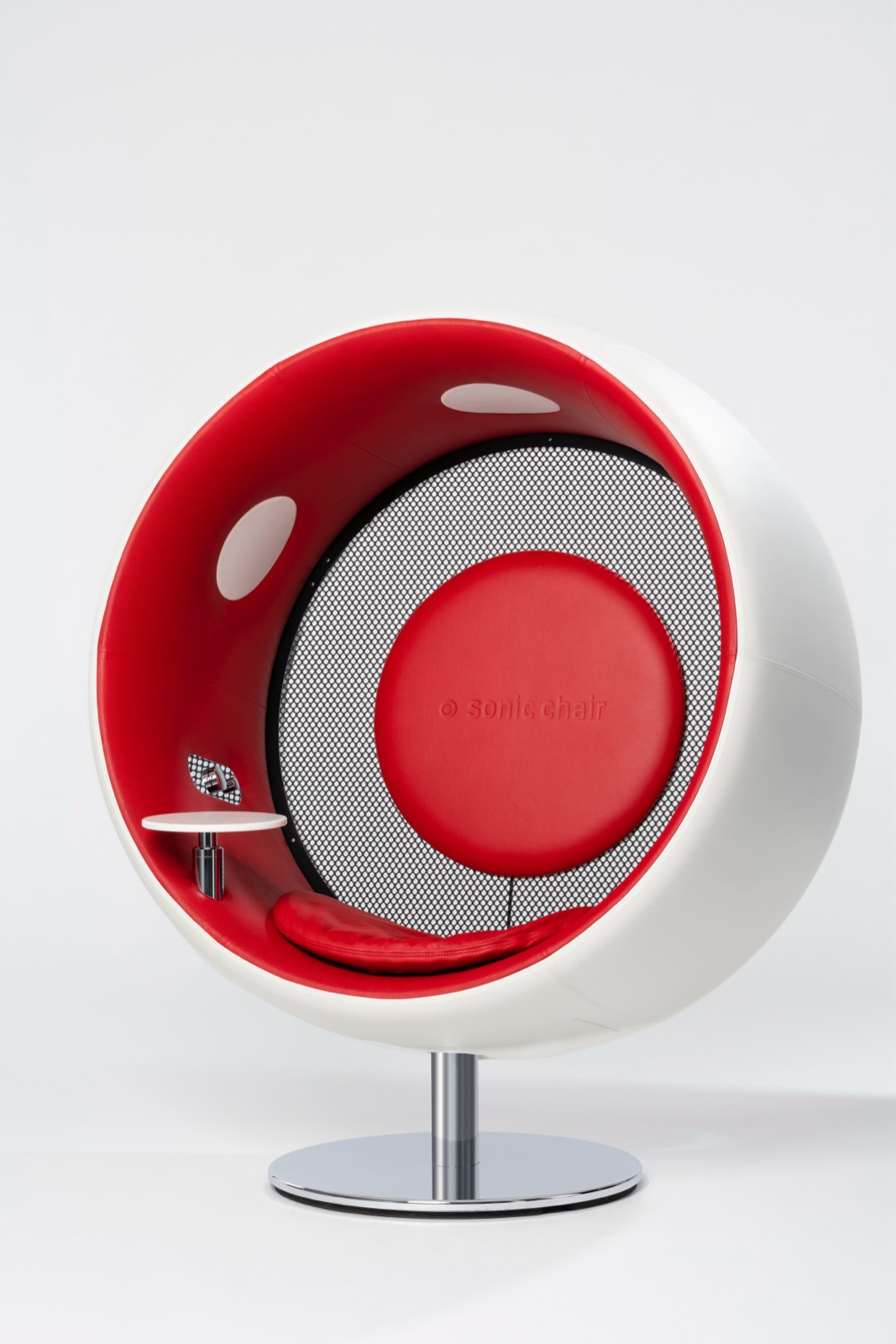

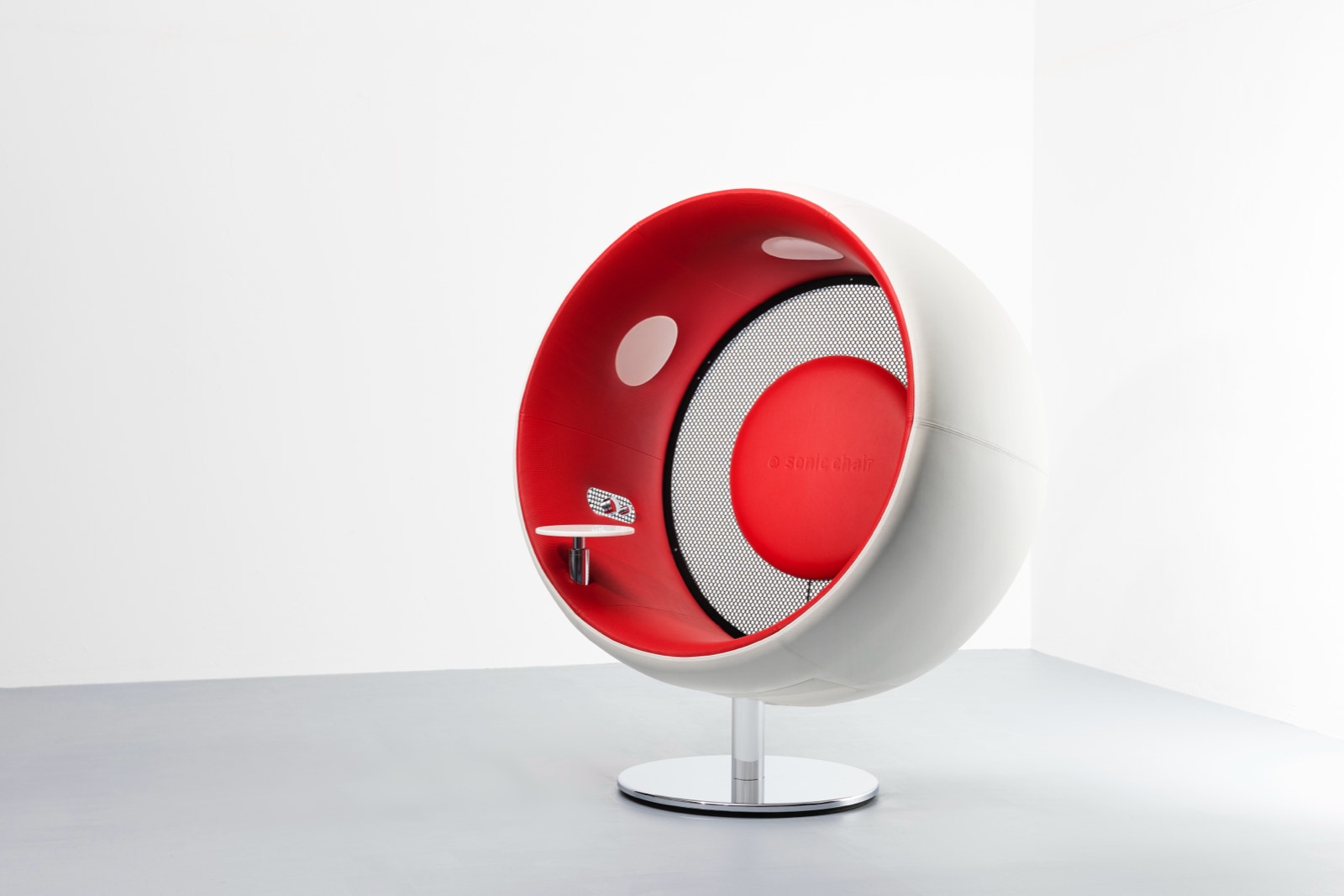

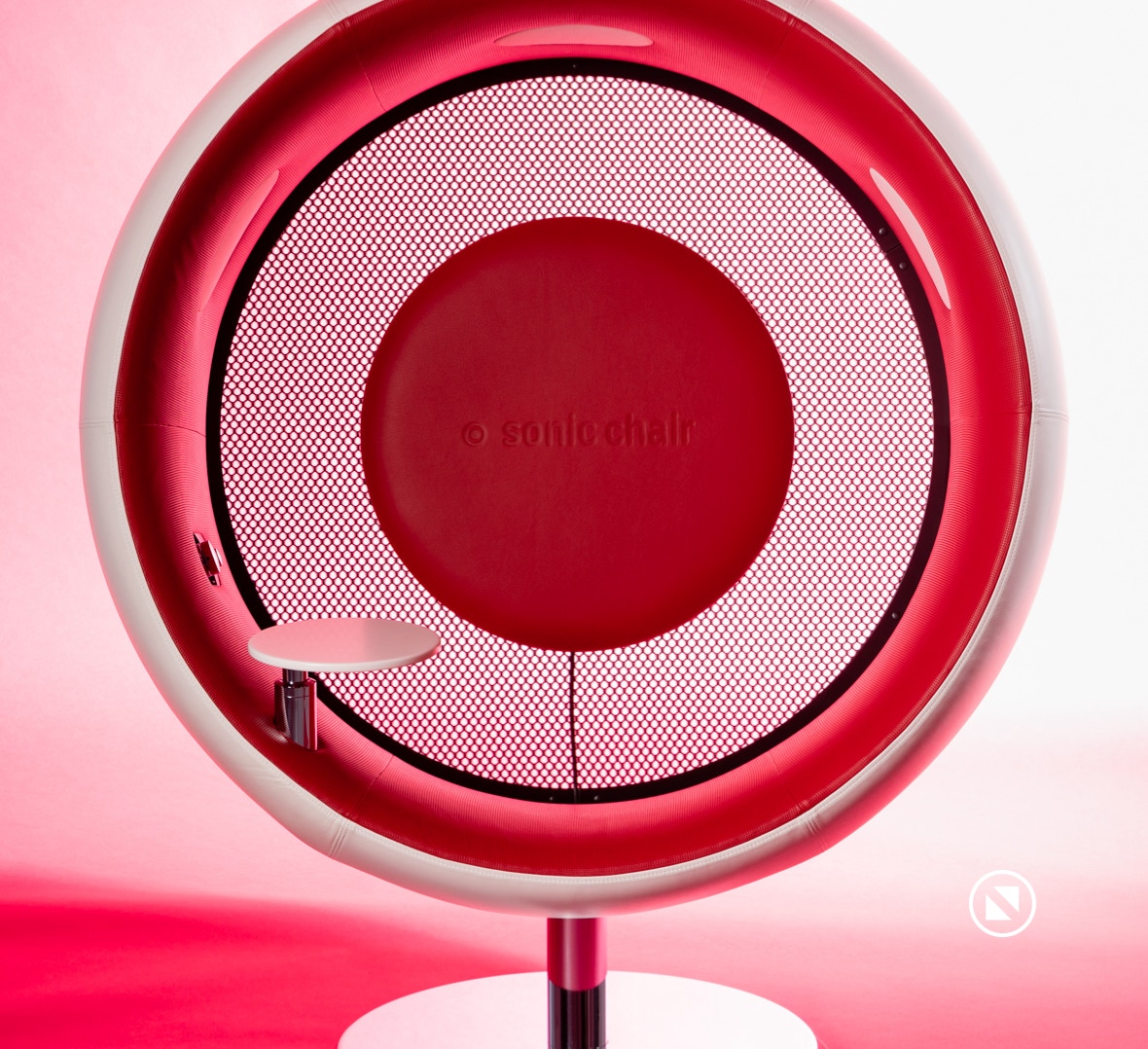

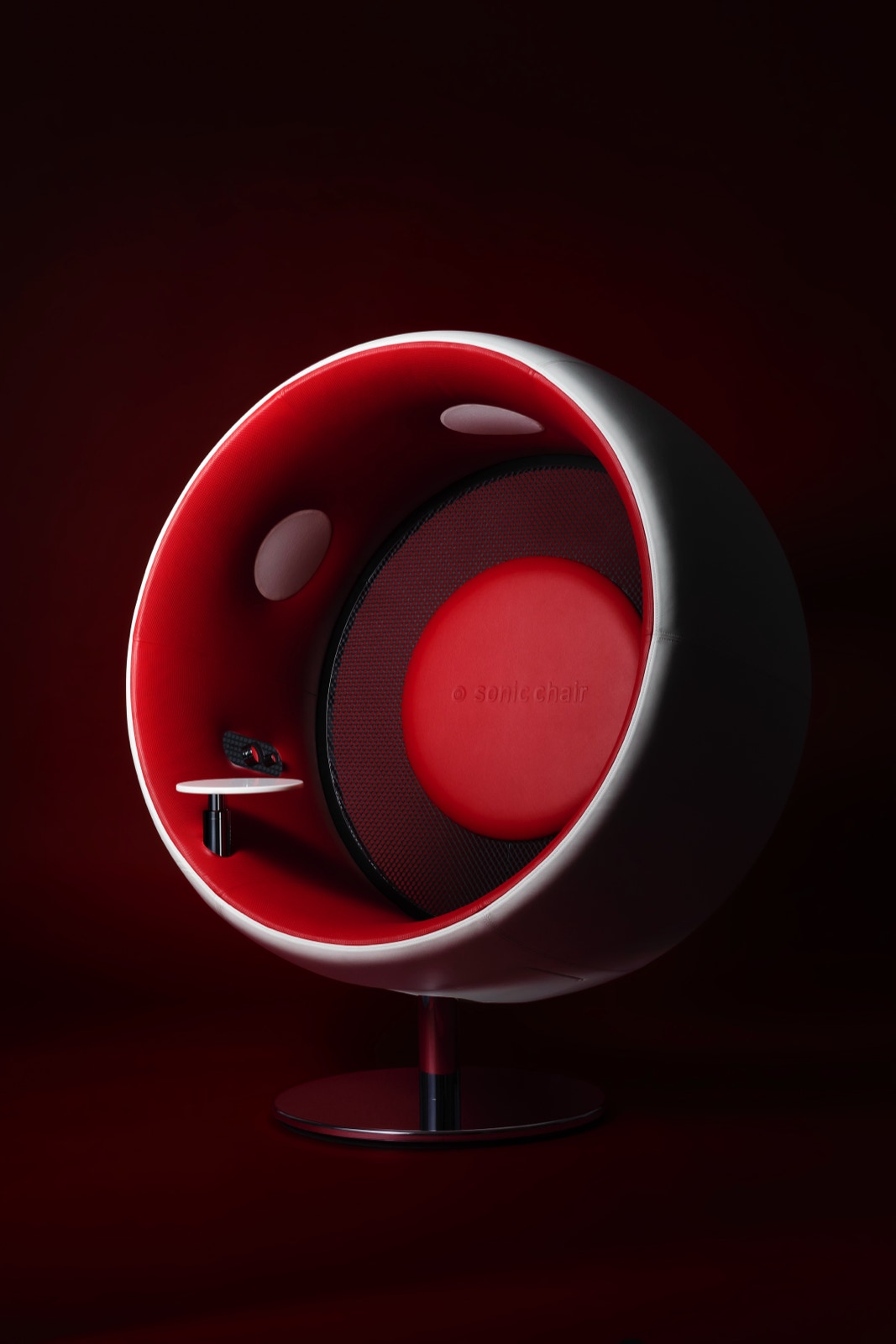

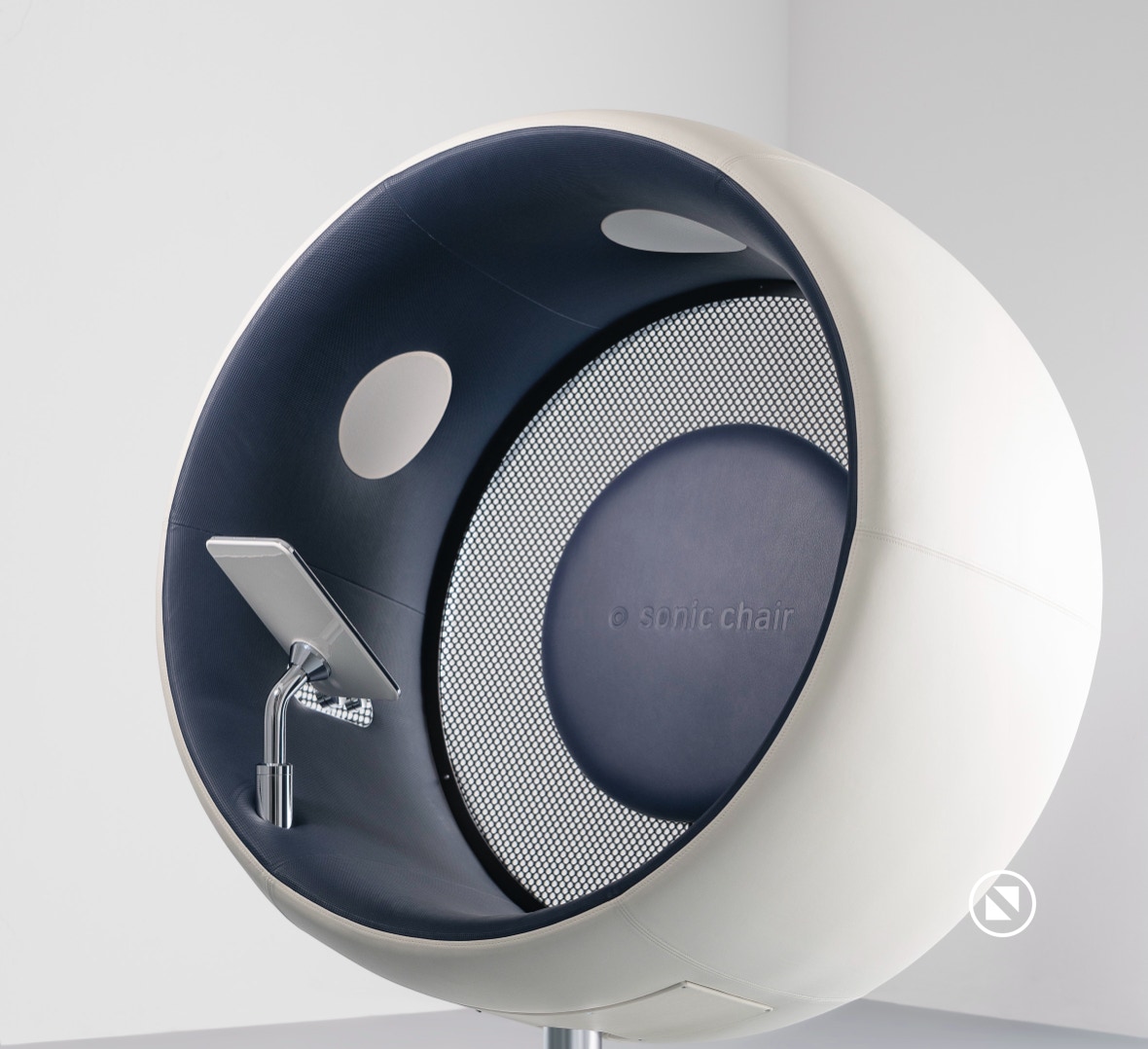

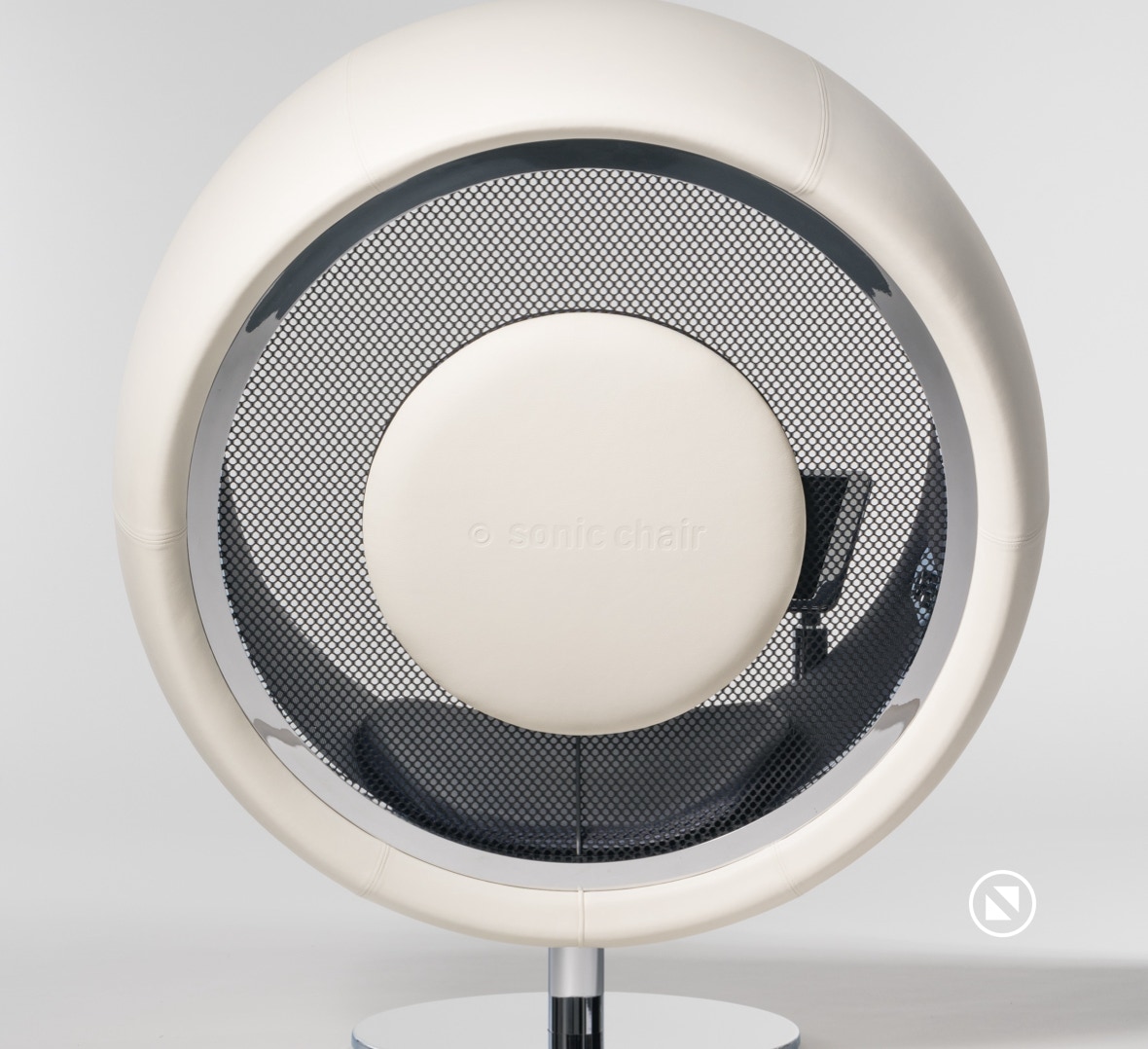

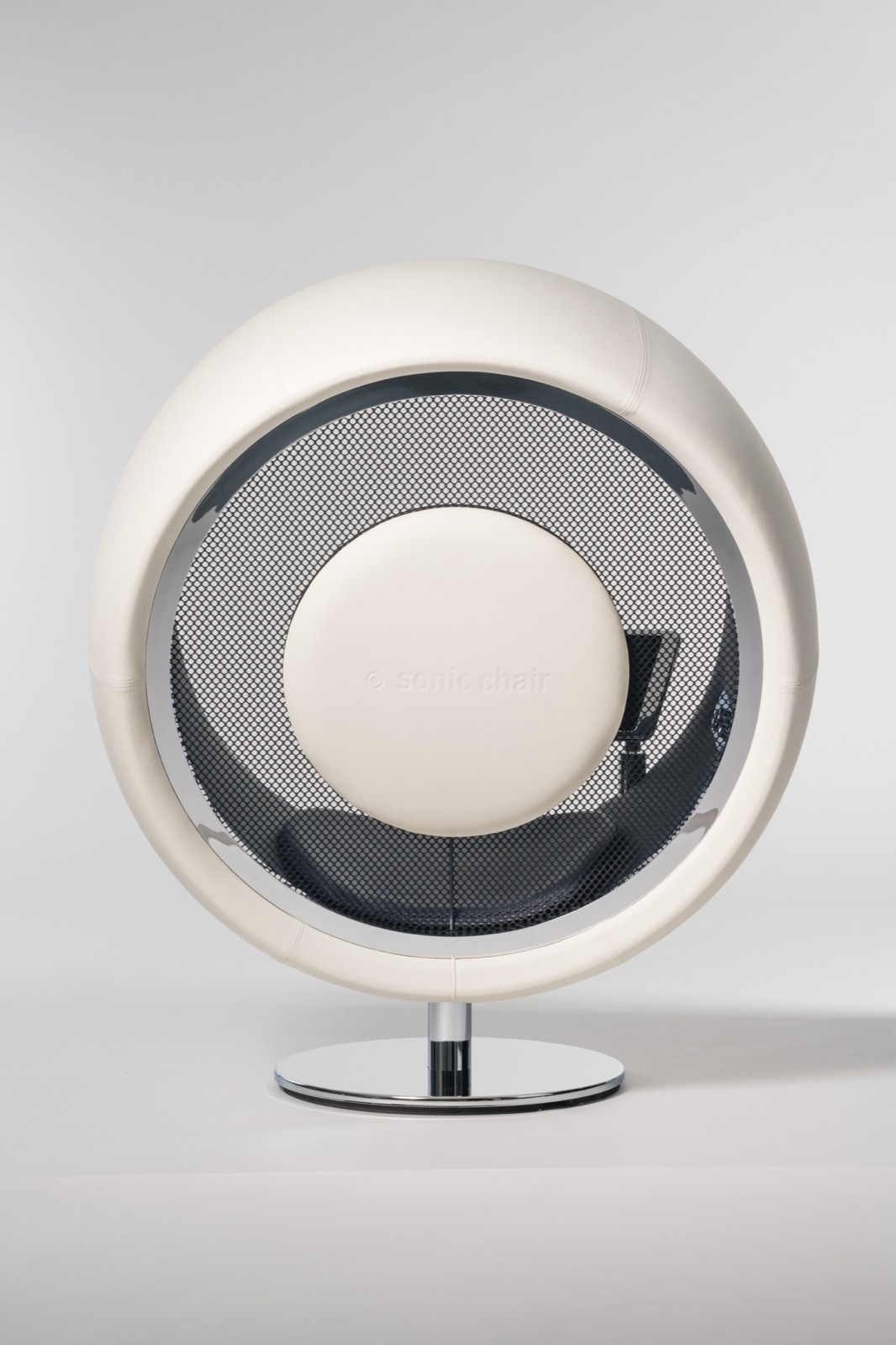

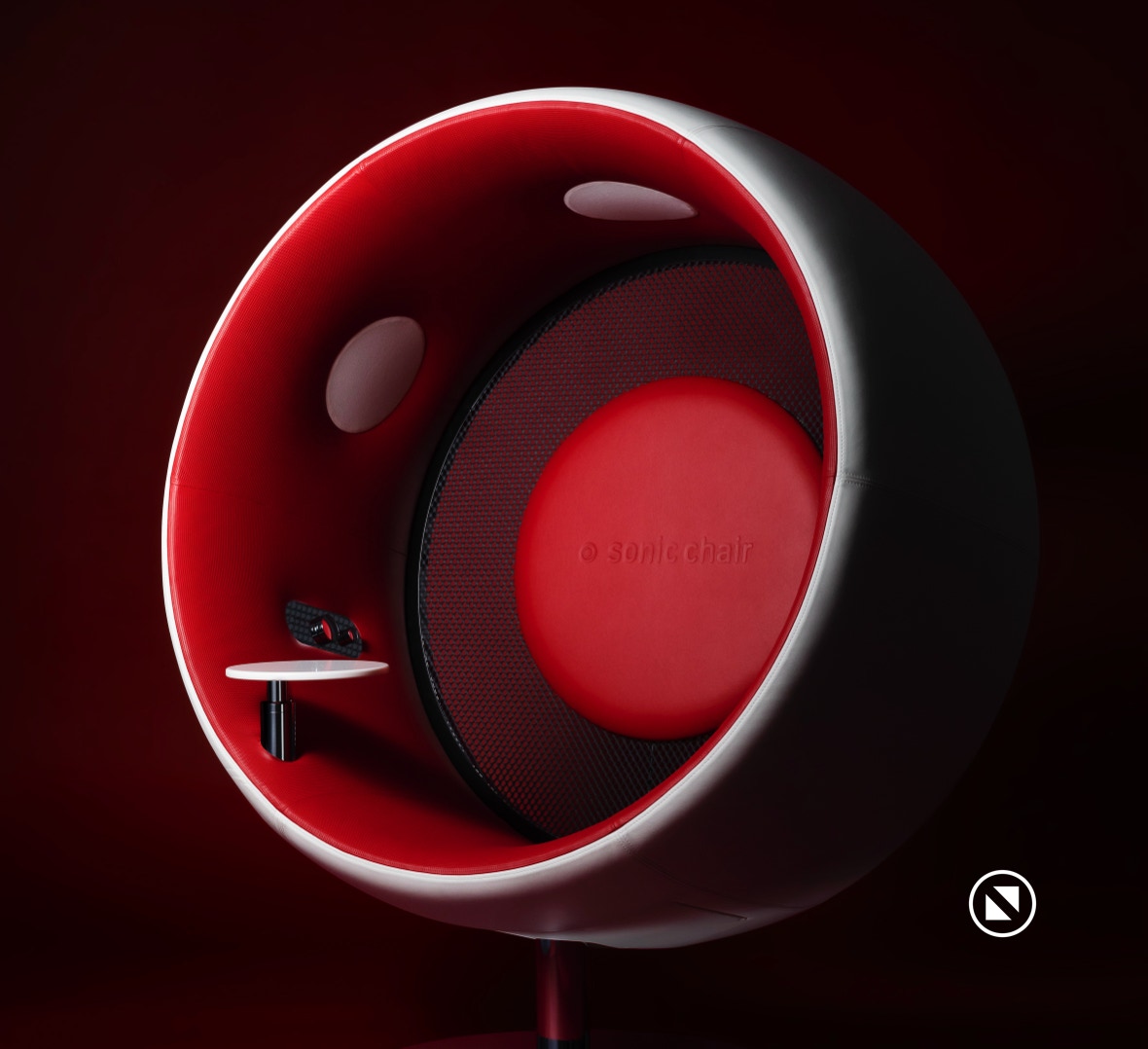

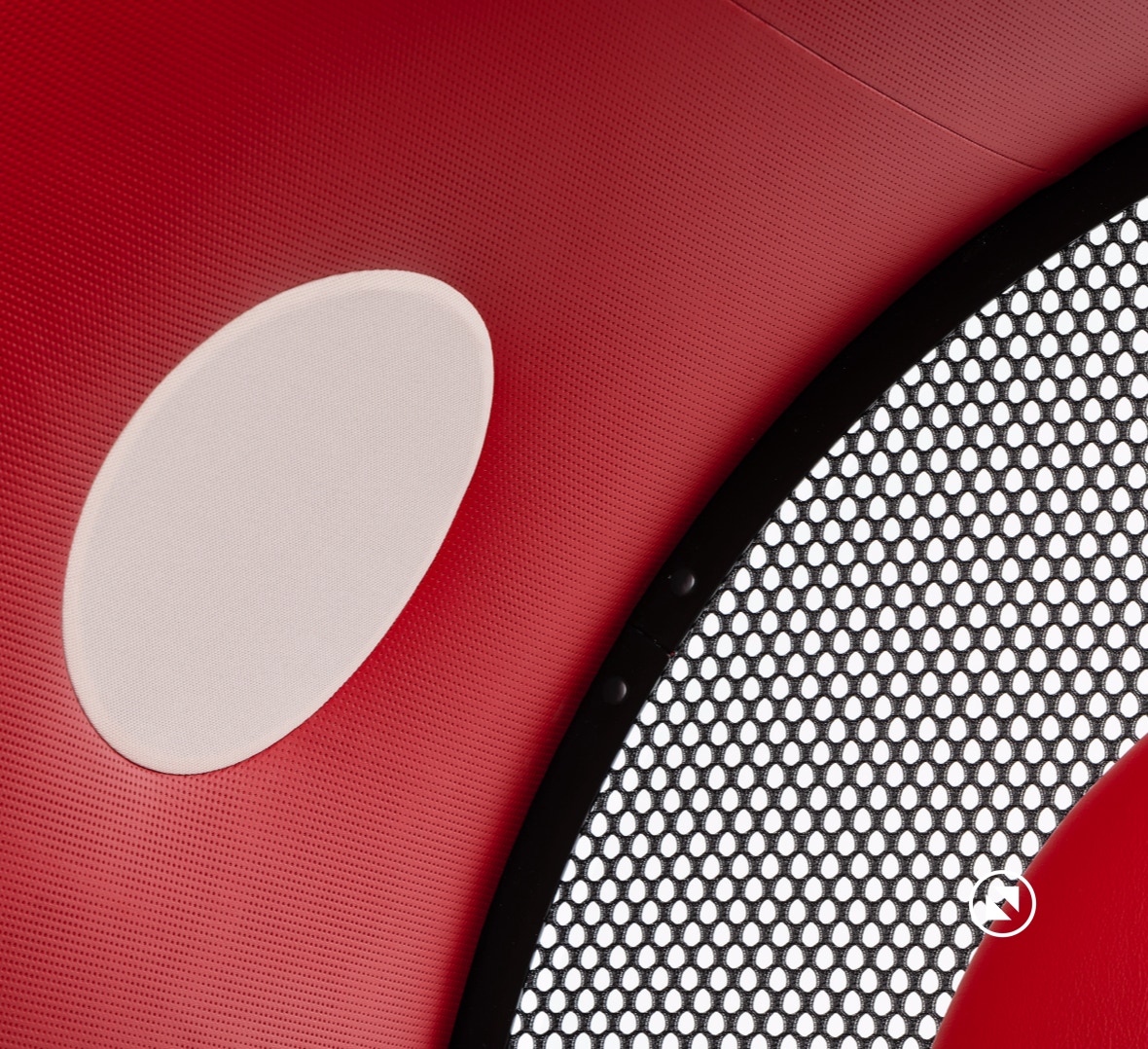

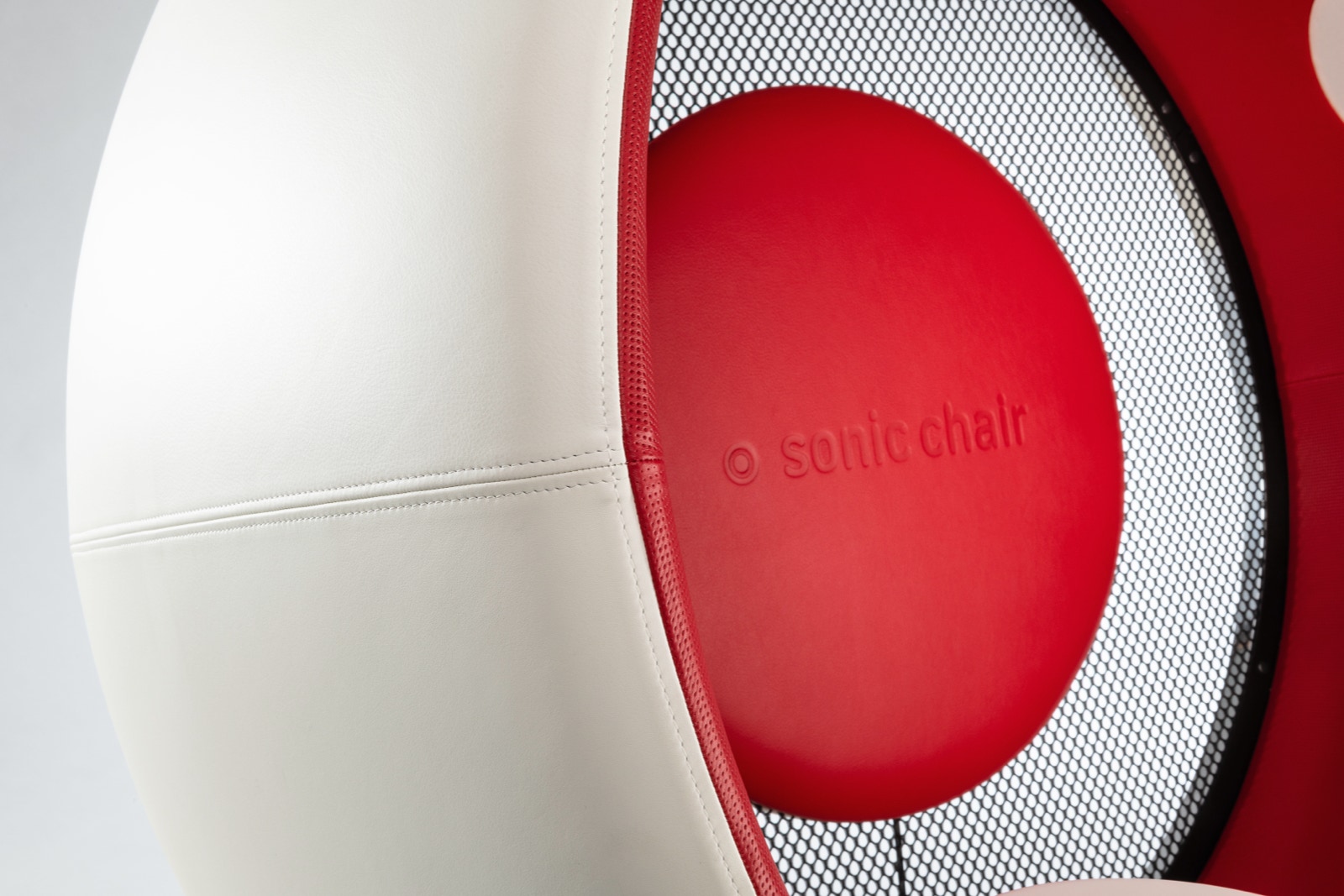

Similar to a music instrument, the form of the sonic chair is determined by the acoustics: Sitting at the centre of the sound supports the spatial perception of the recording. Whereby, the deep frequencies are transmitted to the listener’s back by a structure-borne sound membrane. In addition, a high-quality structure-borne sound converter conveys the sound spectrum, which can be perceived tactilely, to a sounding board that encompass the listener. The listener melds with the sound, what feels like a live concert.

Label 1

Label 2

Label 7

The technical values

electrical connection

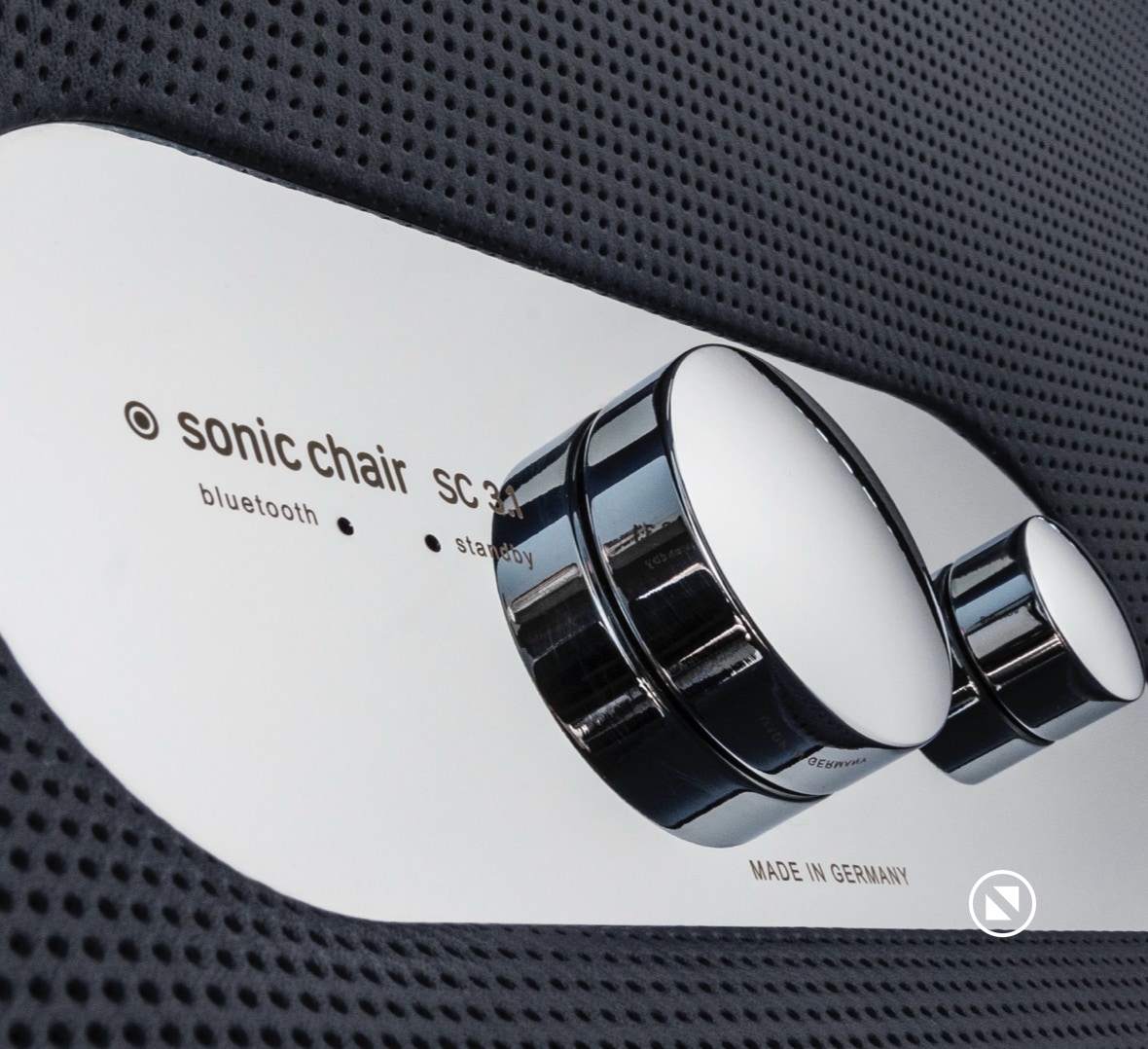

Amplifier SC3.1









Transducer







resonating body






round base





external dimensions


inside dimension


space requirement


weight

115 VAC - 230 VAC, plug IEC60320 / C13, fused with Flink 2A



HYPEX 6-Channel Class D High Power Amplifier

(3 x Uc32MP 75W) corresponds to 6 x 37 W / THD+N0, 25 % at 20Hz < f < 20kHz


2 tweeter channels DSP controlled, 5,000 Hz - 25,000 Hz

2 midrange channels DSP controlled, 1,500 Hz - 5,000 Hz

1 bass channel DSP controlled, 45 Hz - 1.500 Hz

1 structure-borne sound channel DSP controlled, 10 Hz - 400 Hz



SEAS Prestige tweeter, Ø 60 mm, 3000 Hz - 25000 Hz

SEAS Prestige midrange driver, Ø 120 mm, 45 Hz - 5000 Hz

SEAS Prestige bass driver, Ø 180 mm, 45 Hz - 3000 Hz

IBEAM VT200 transducer, 1 Hz - 15 kHz tactile, 25 Hz - 16 kHz acoustic

Virtual Bass Membrane, Ø 1040 mm, 10 Hz - 200 Hz tactile



ring-shaped speaker enclosure with a volume of 32 liters,

glued in layers of beech wood, machined with computer-controlled milling machines and carefully assembled by hand

Struts made of multiplex birch and a loudspeaker volume of 32 liters


350° rotatable with limiter and internal cable guide

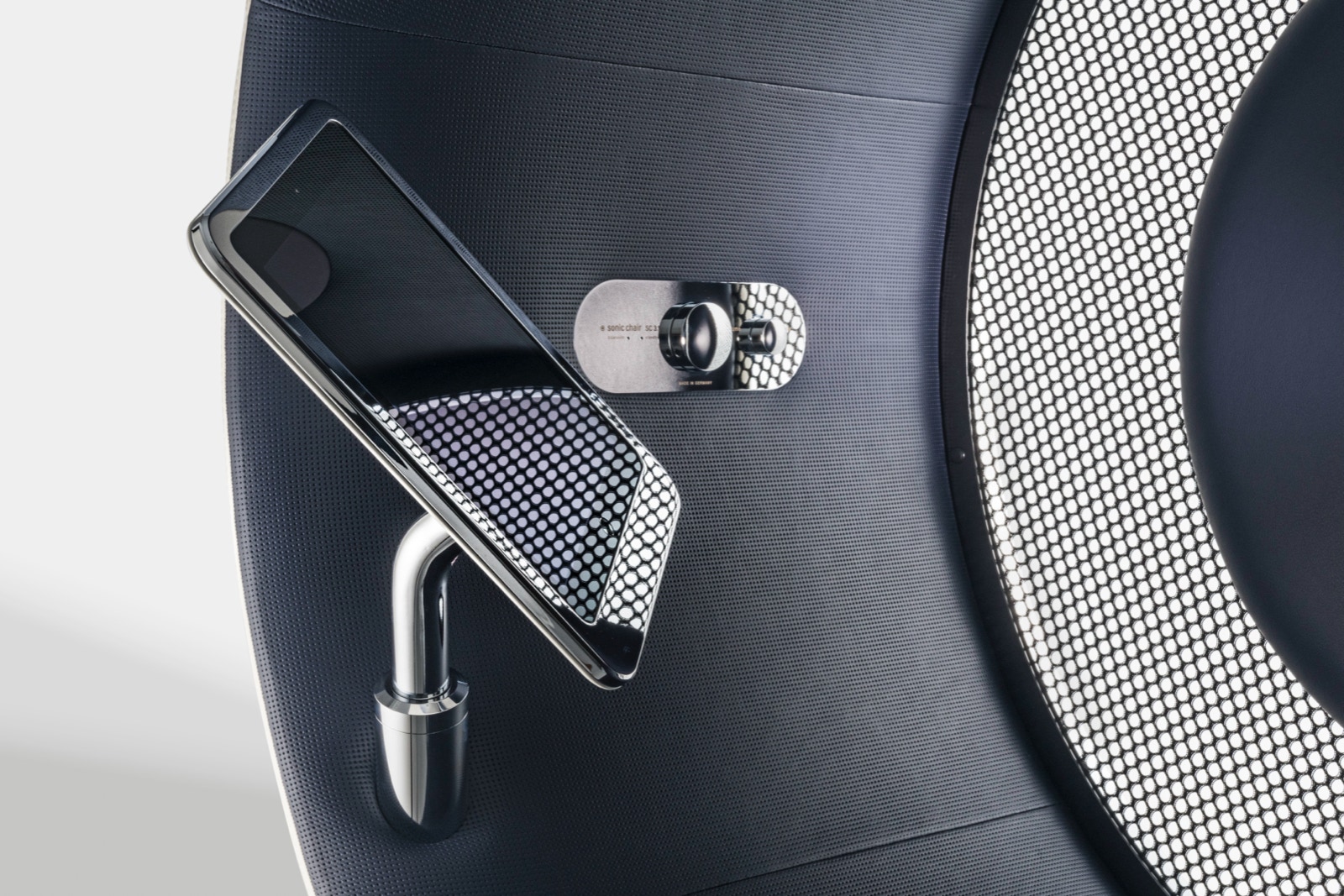

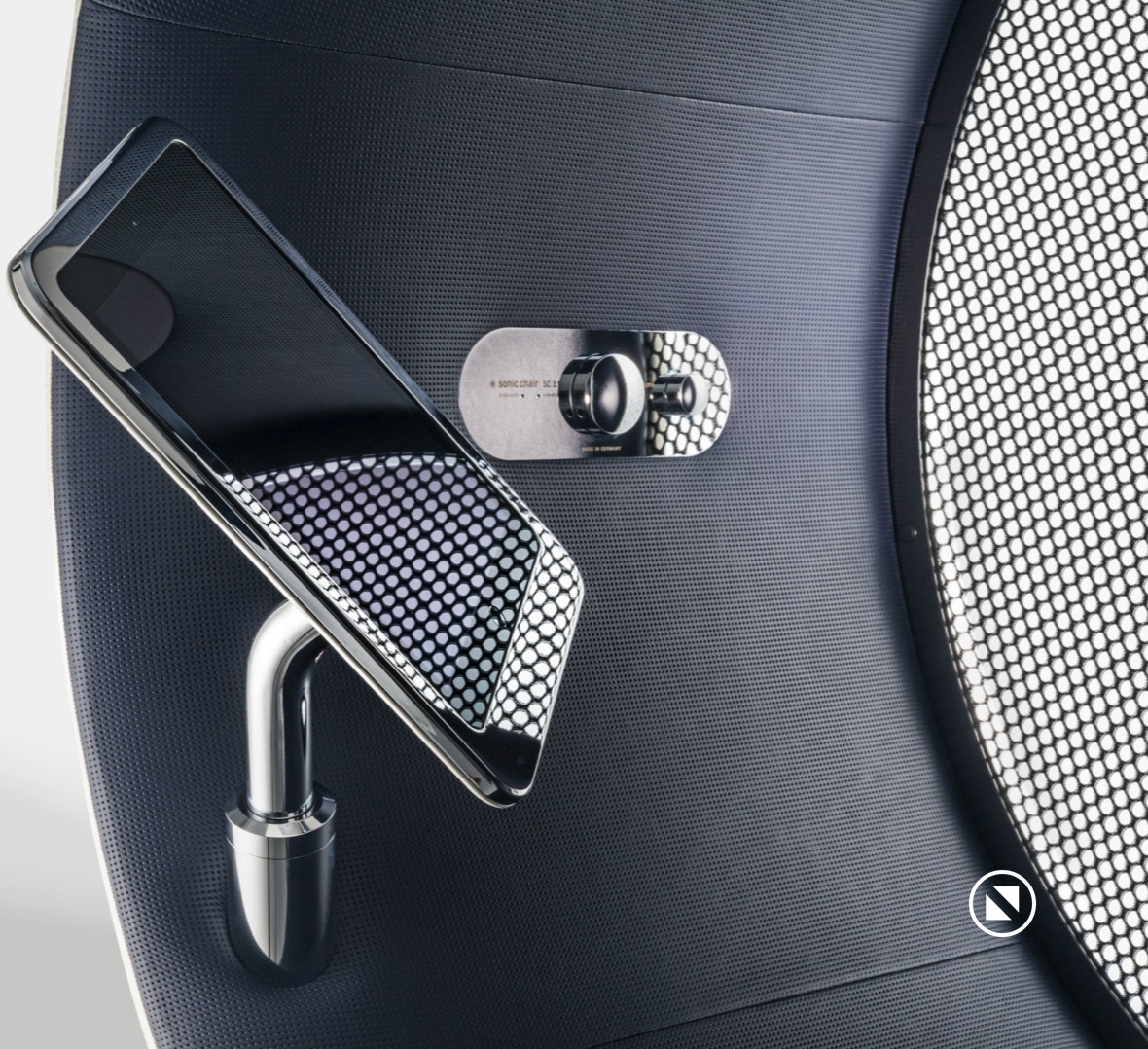

Connection terminal with C14 plug and stereo RCA sockets

magnetic cover made of hand chromed stainless steel

Stand skids with three cable bushings or cabling via floor tank


144 cm x 127 cm x 63 cm / H x W x D


100 cm x 60 cm / Ø x T


Ø 140 cm


approx. 100 kg

sonic chair by Holger Fritzlar produkt+design, Bernhardstraße 105 -107, 50968 Köln      www.sonicchair.de     sonicchair@me.com

We rely on the highest quality and precision craftsmanship

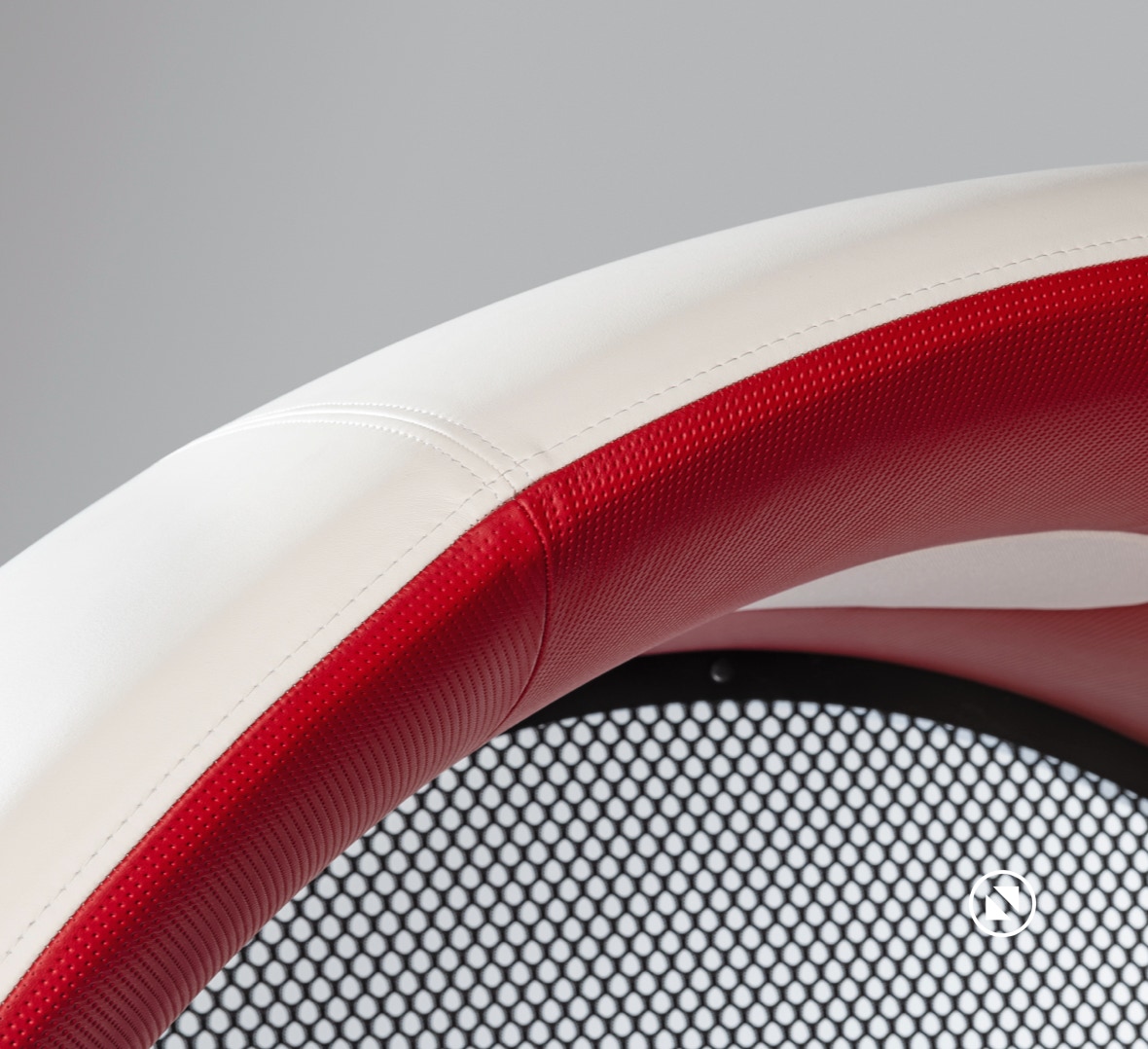

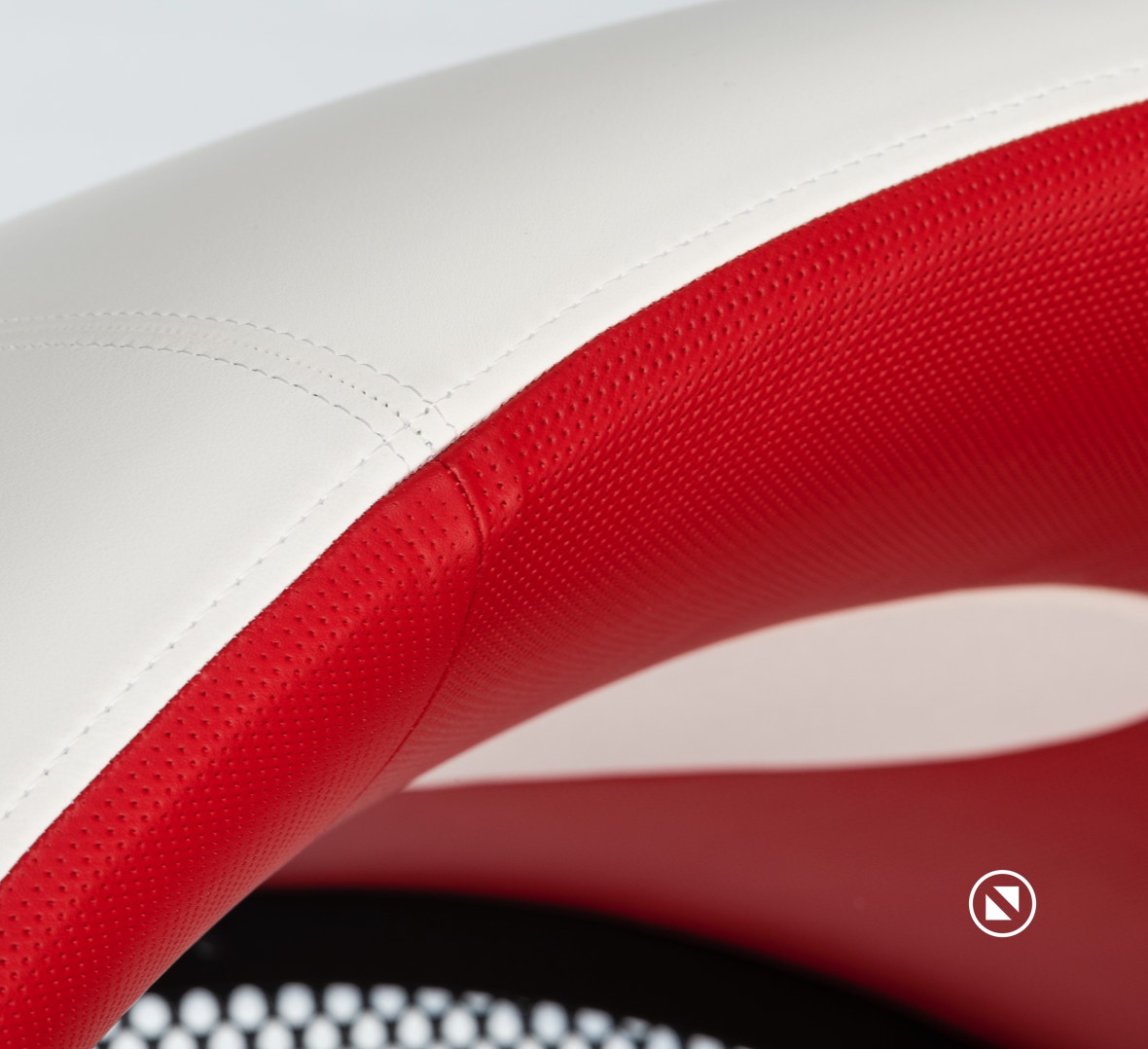

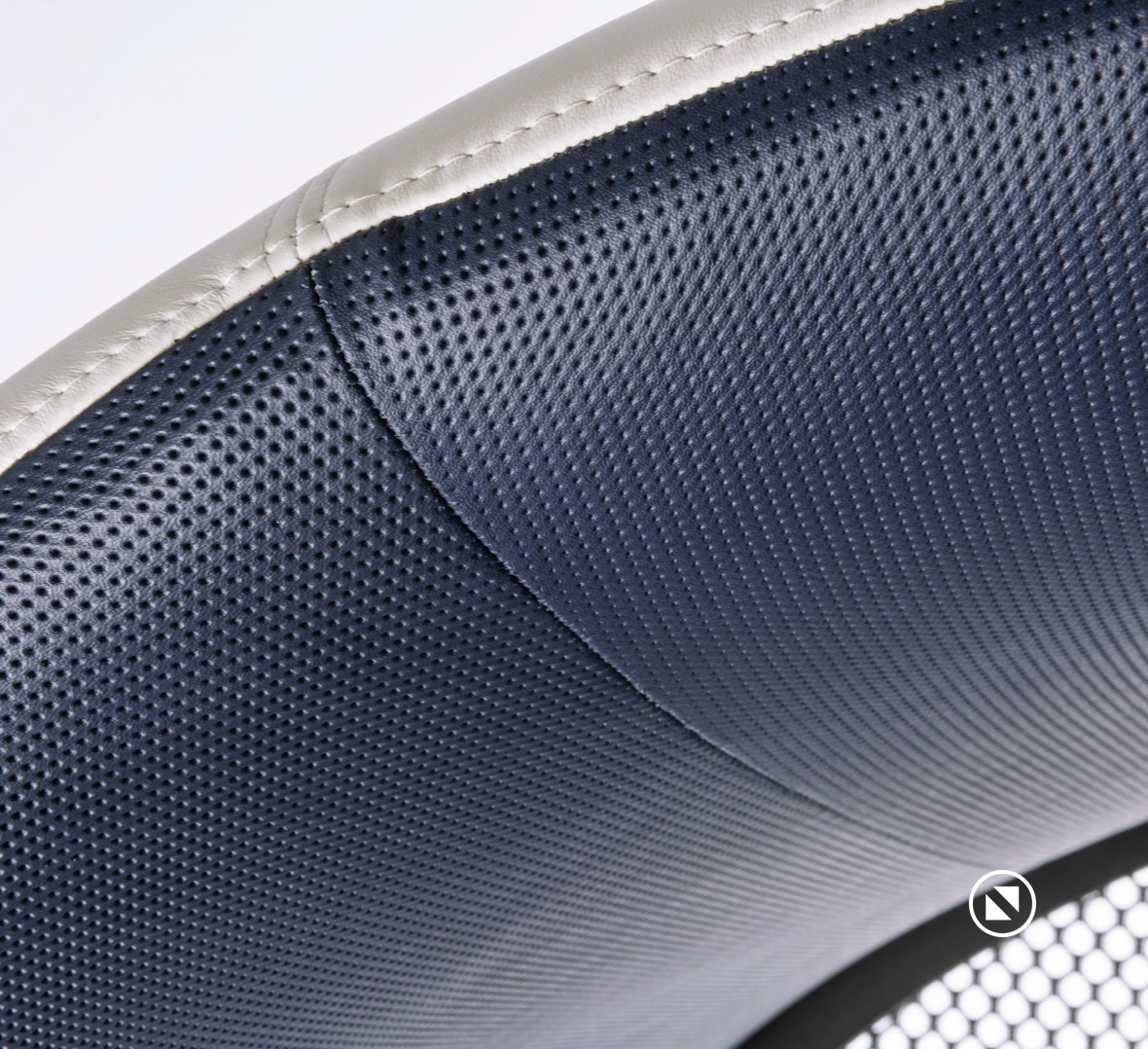

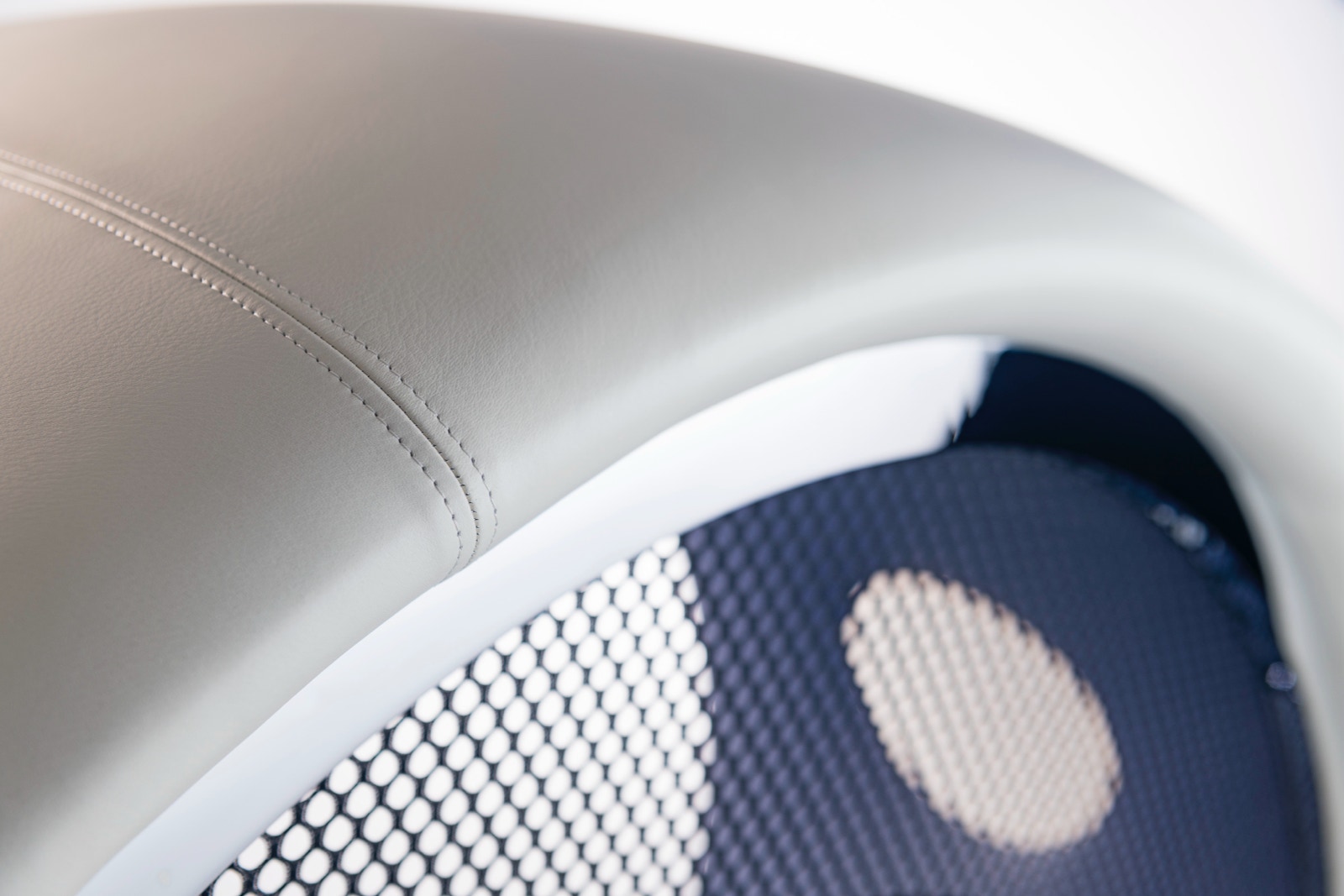

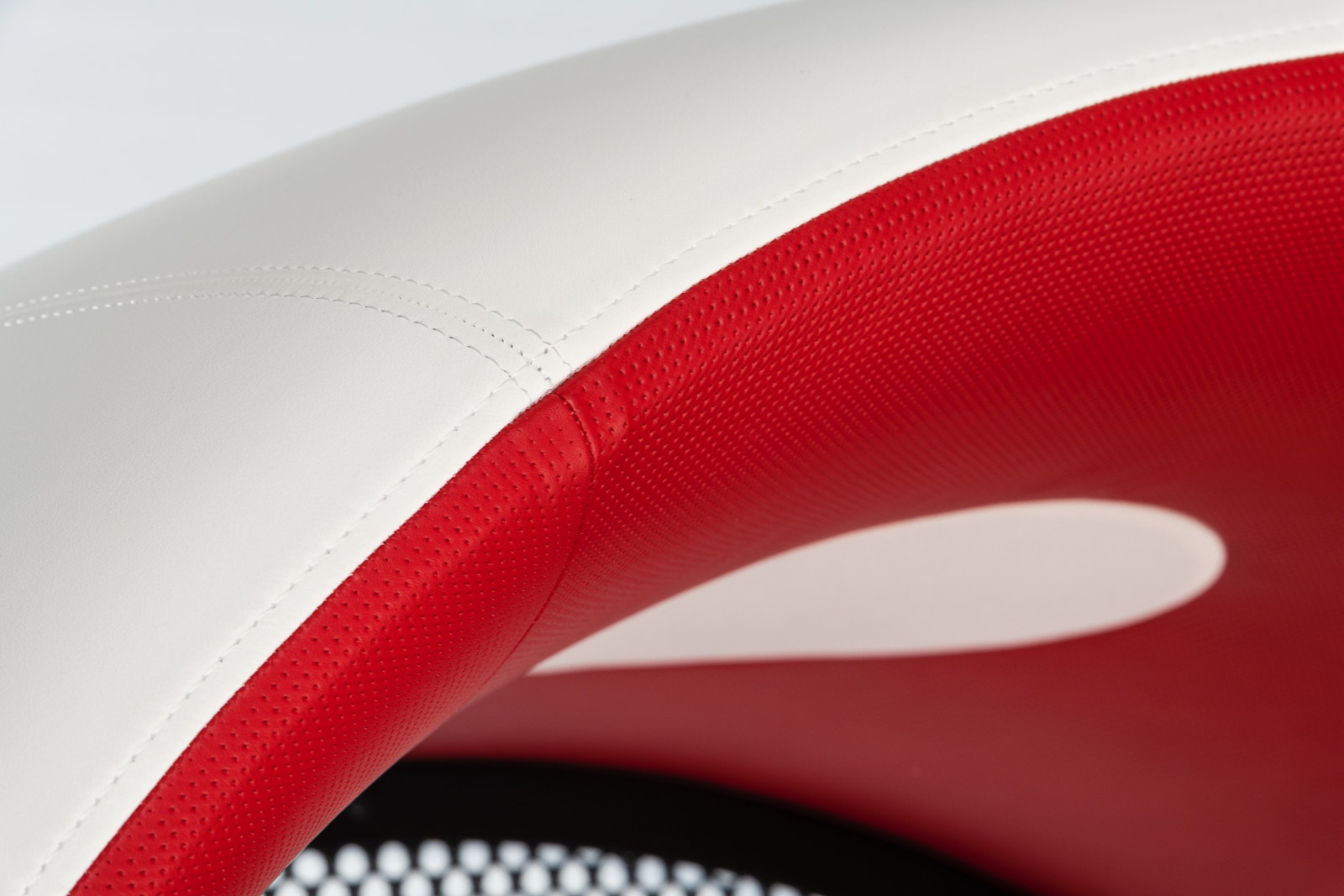

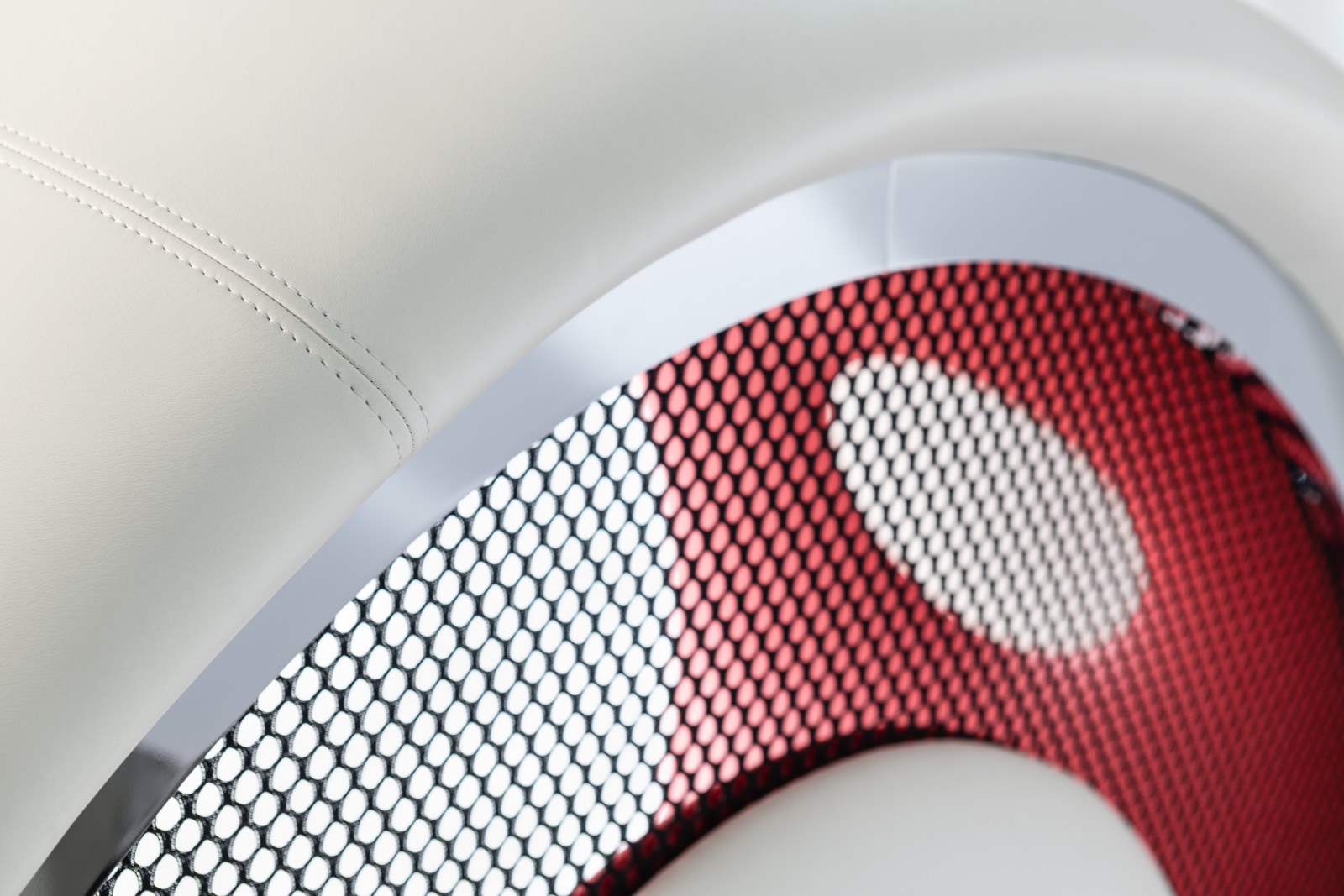

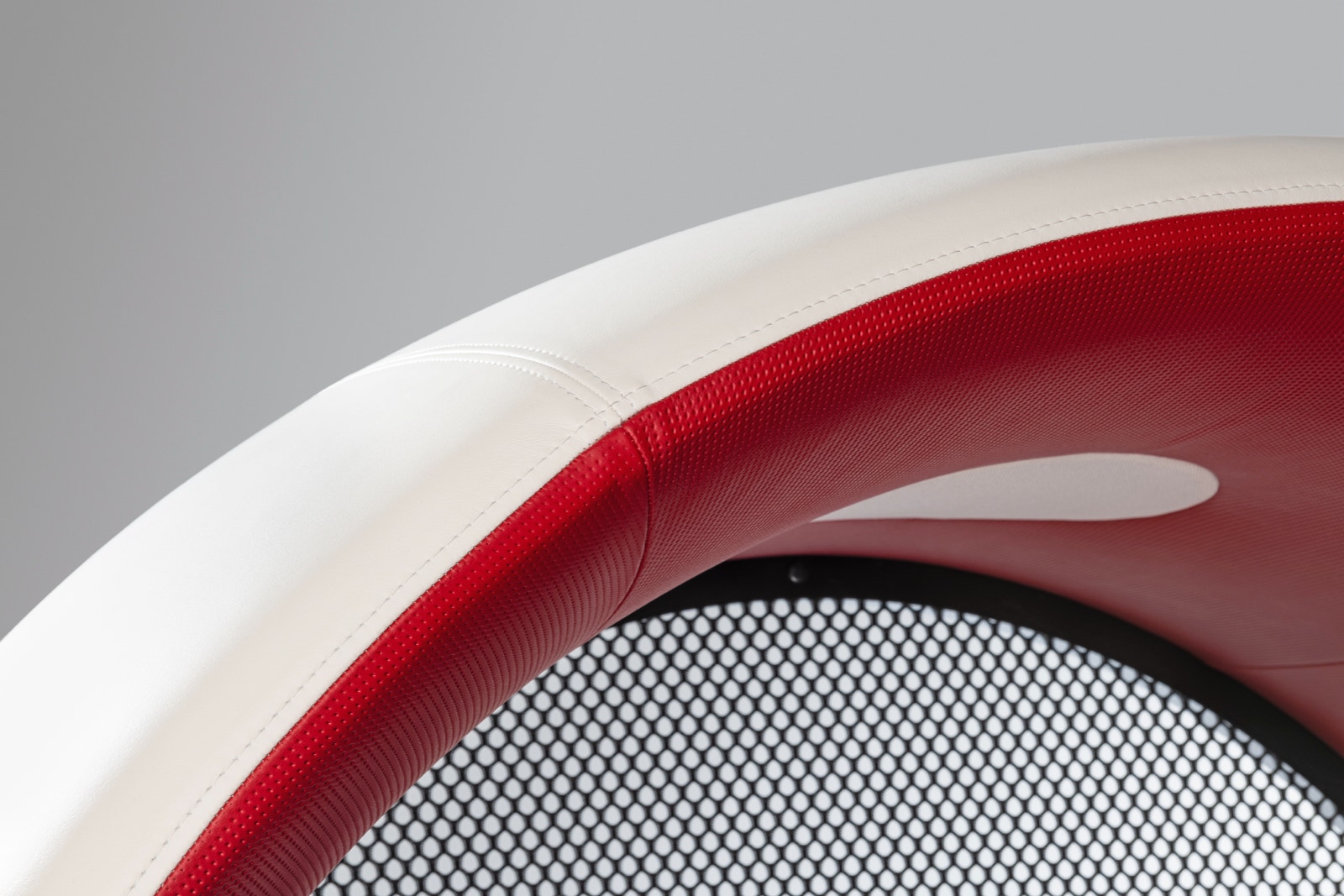

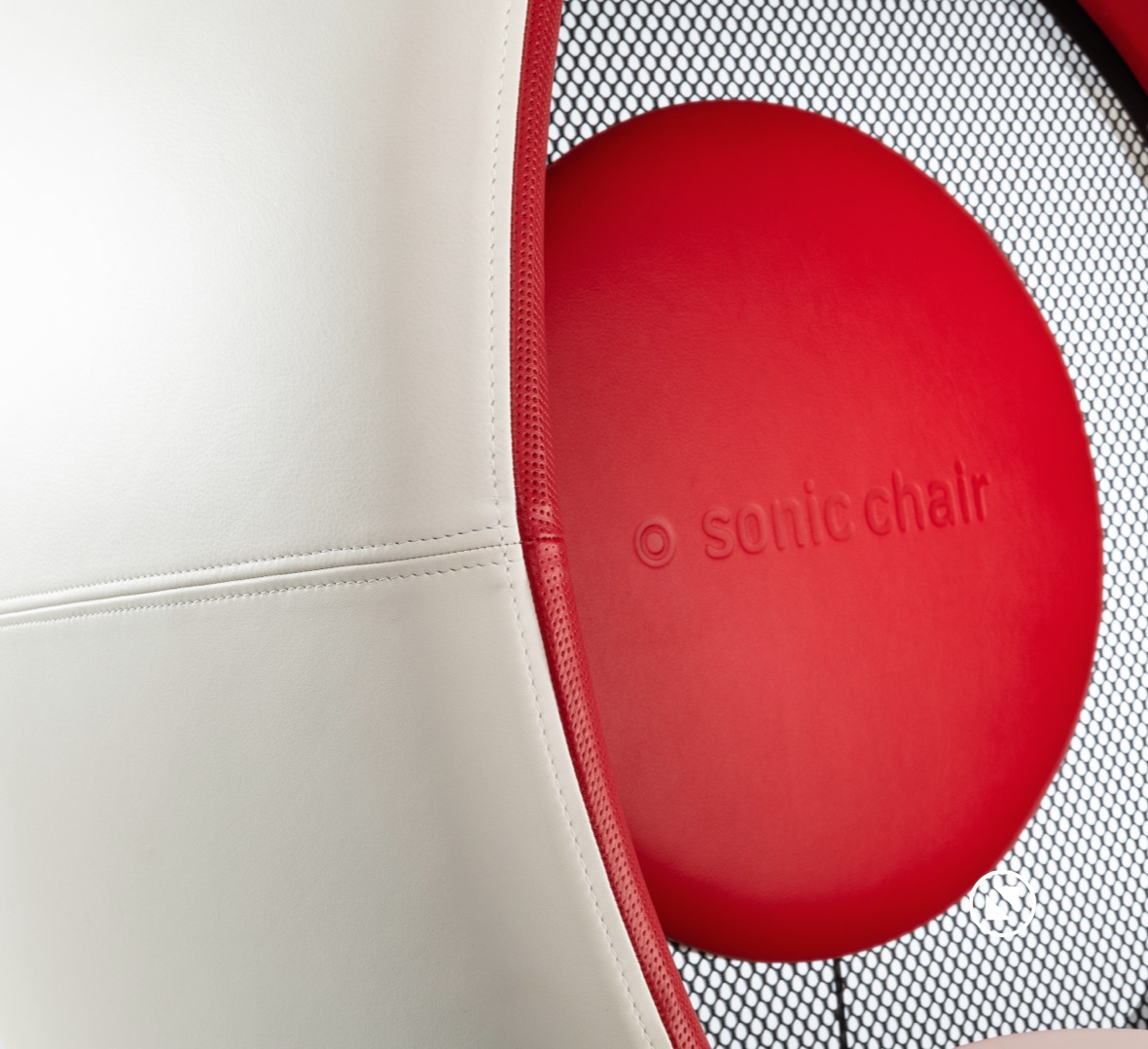

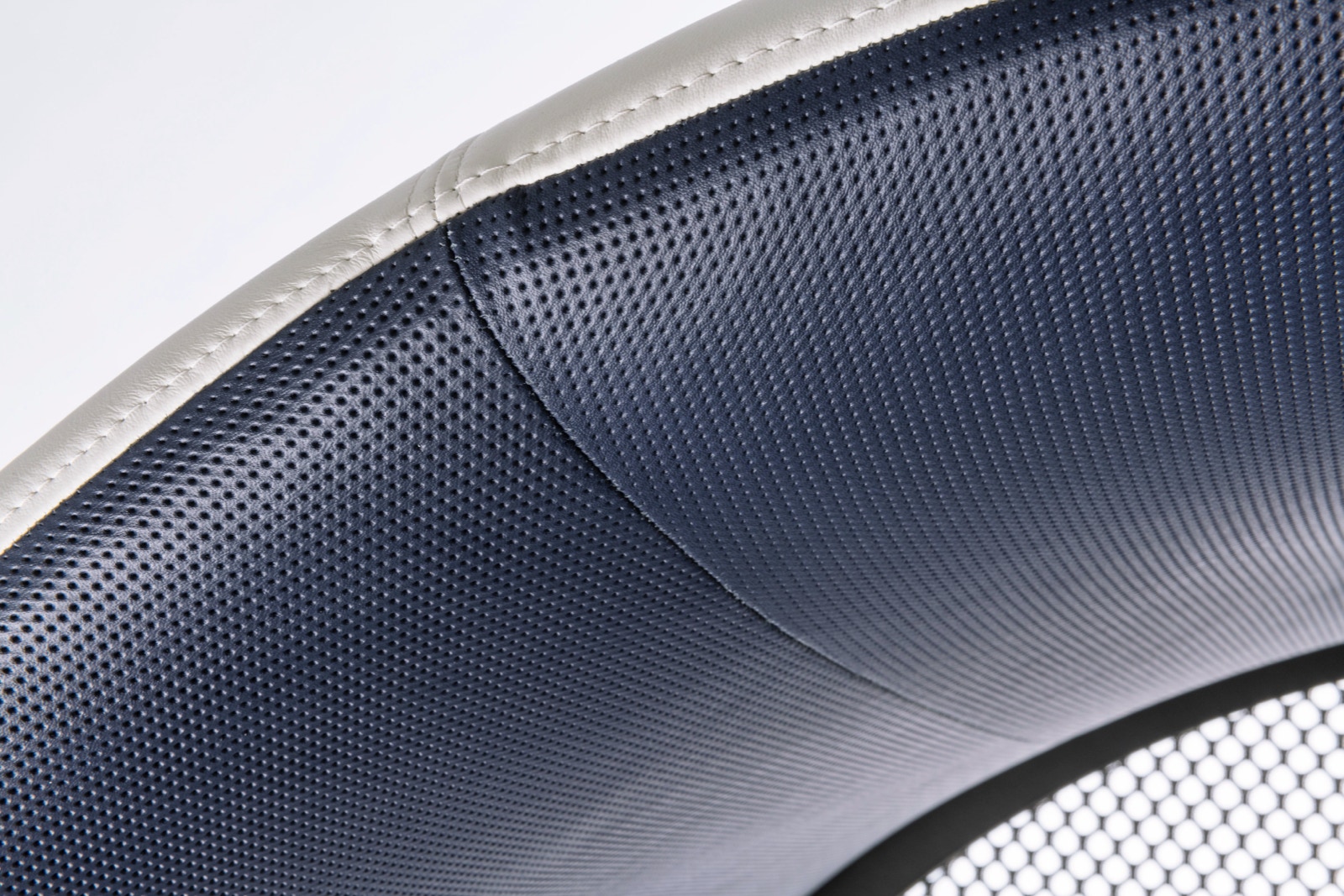

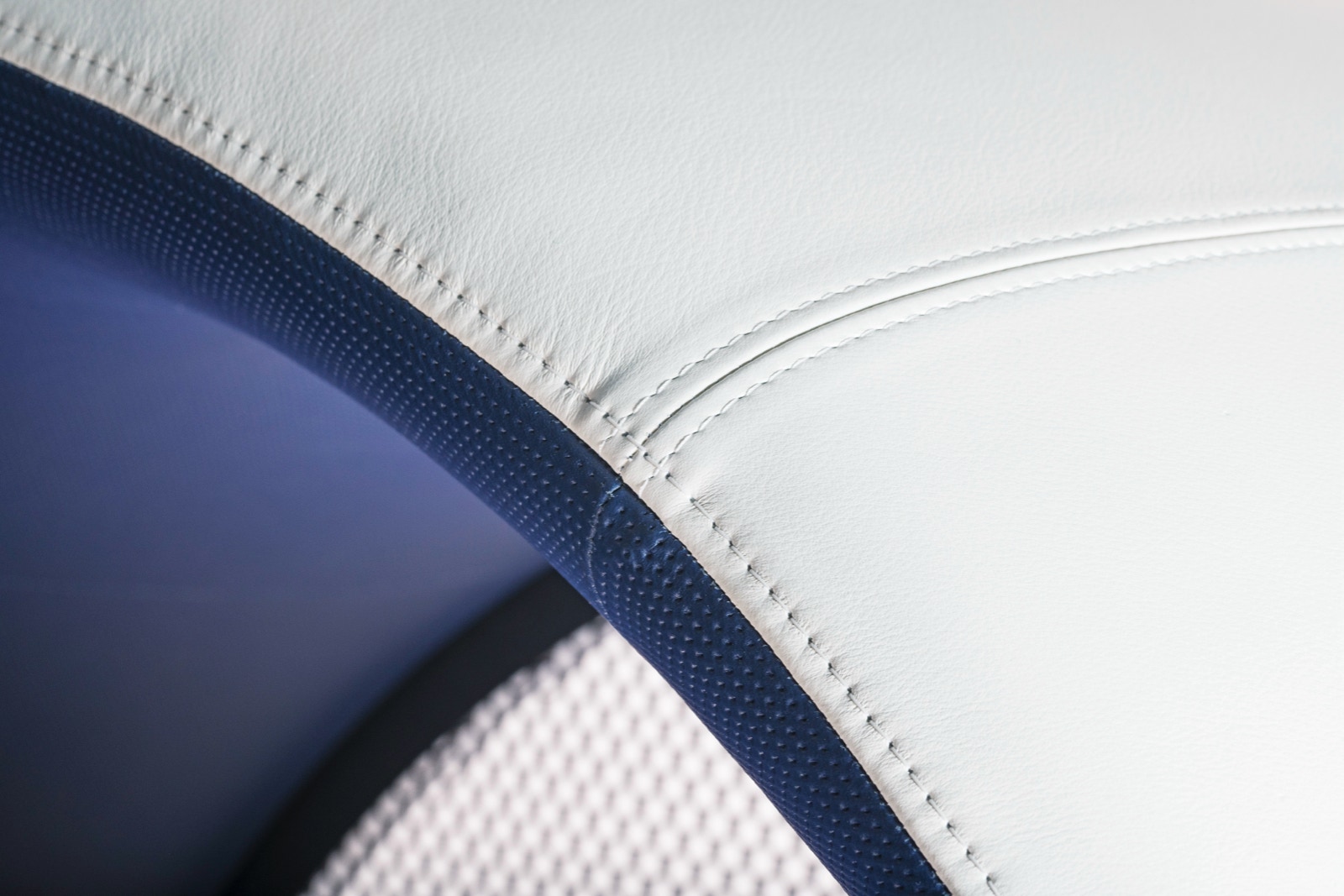

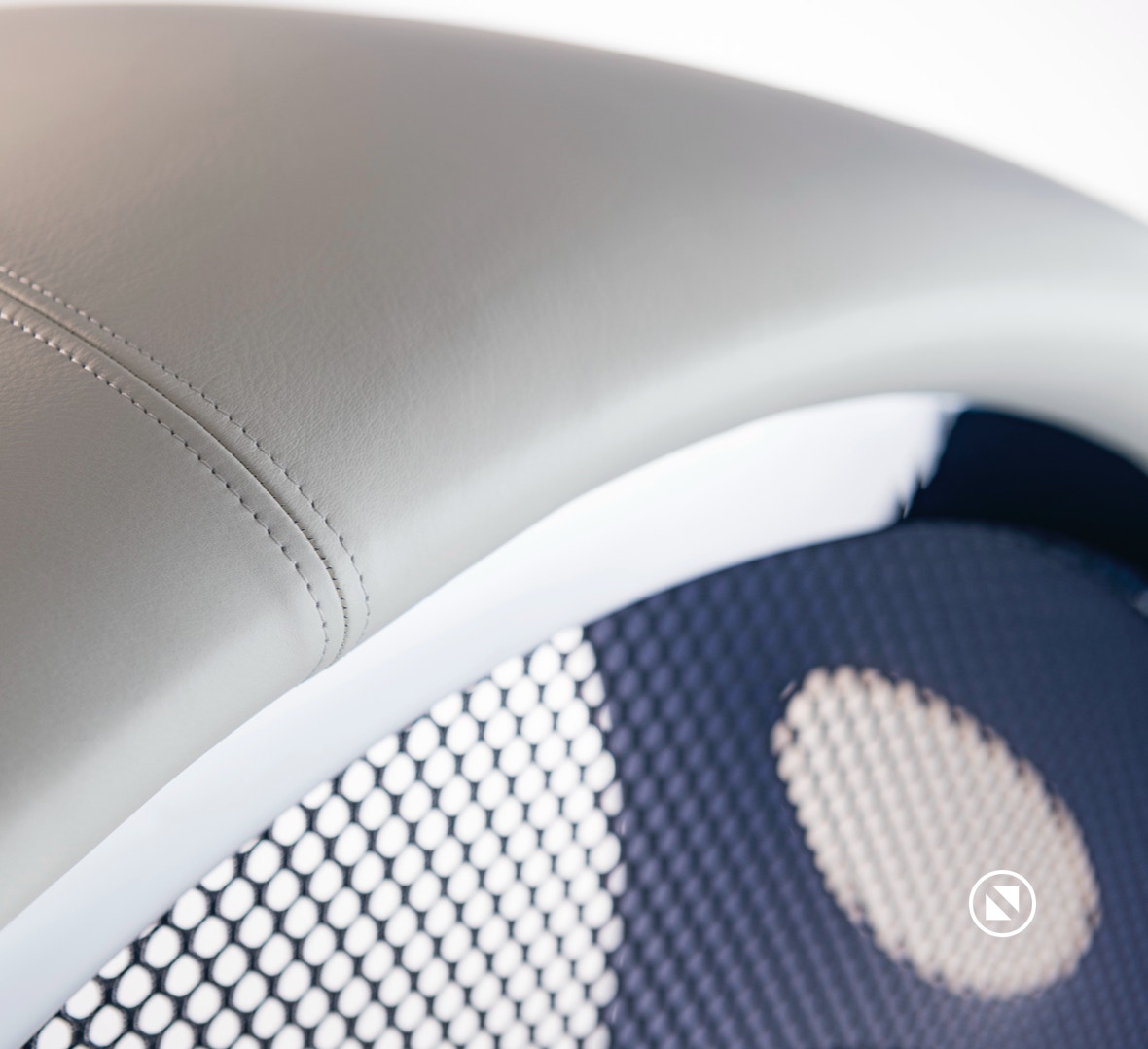

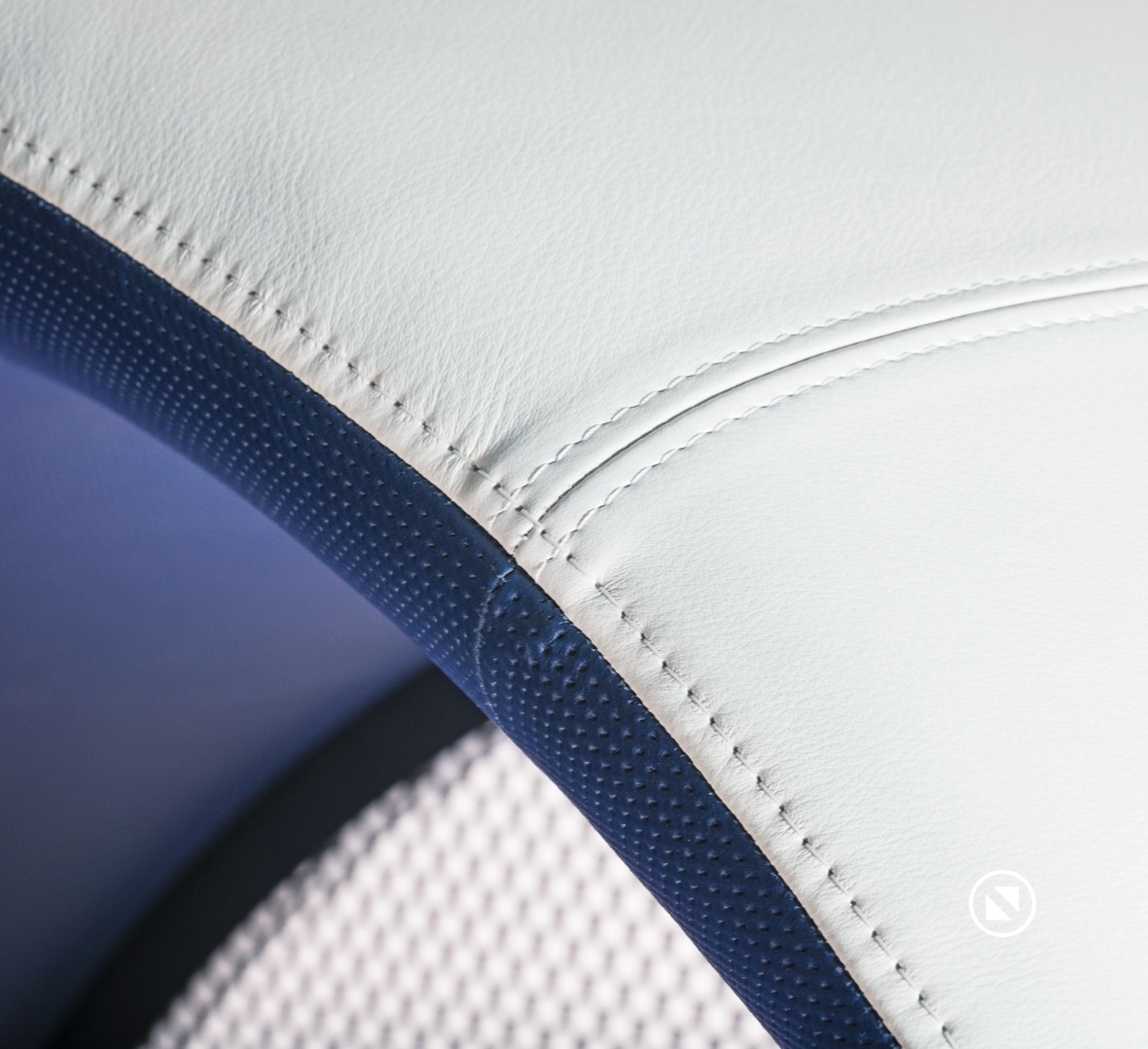

To create the perfect sound in its most beautiful form requires a high degree of technical precision. That's why every sonic chair is handcrafted in our workshops in Cologne according to the customer's wishes. We upholster your sonic chair in a soft and supple semi-aniline leather from elmo in Sweden. It is very durable and available in a wide range of colours. Visible insect bites and small scarred wounds emphasize the natural elegance. For the interior upholstery, the leather is embossed with a breathable structure in Lamborghini patterns.

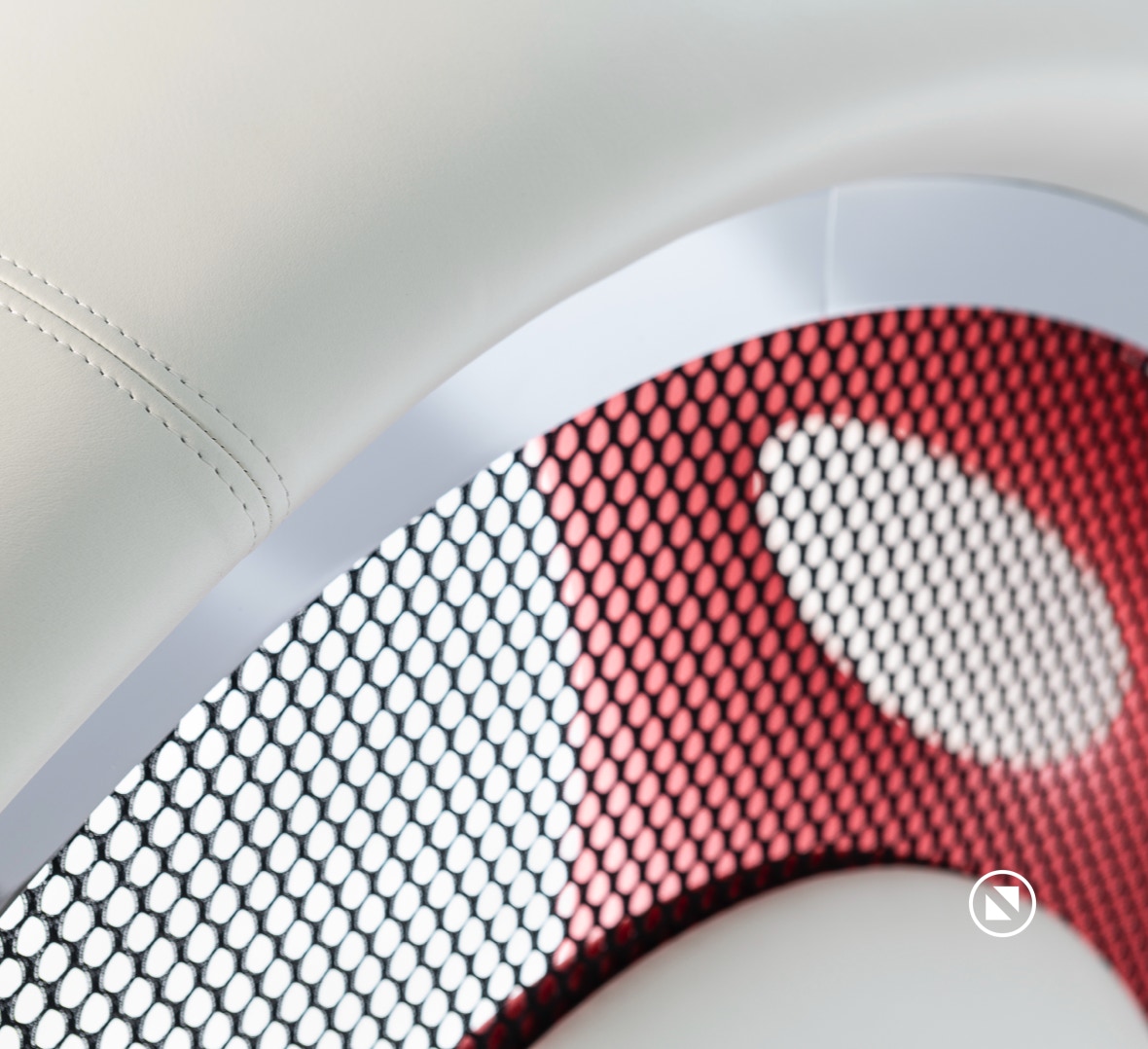

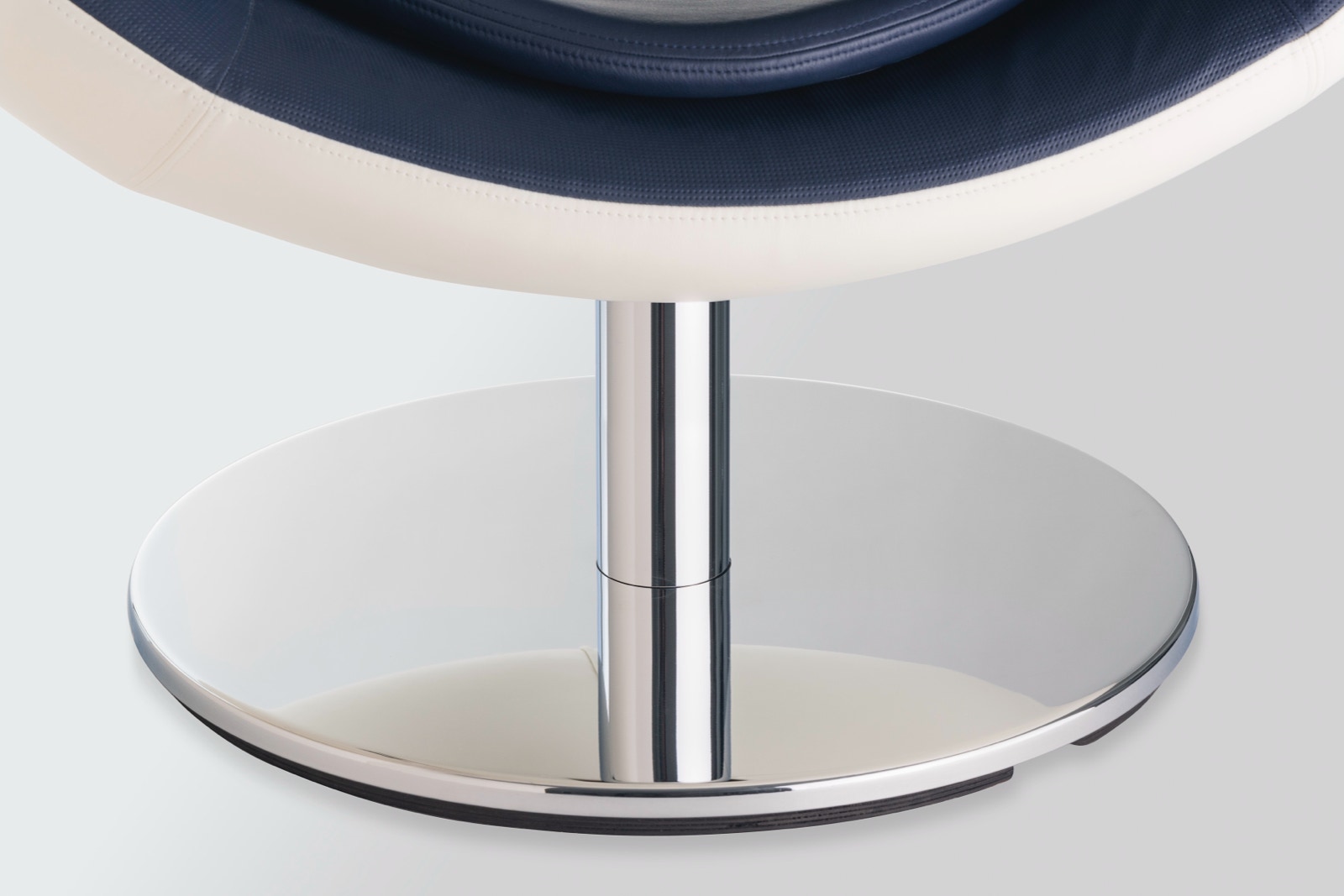

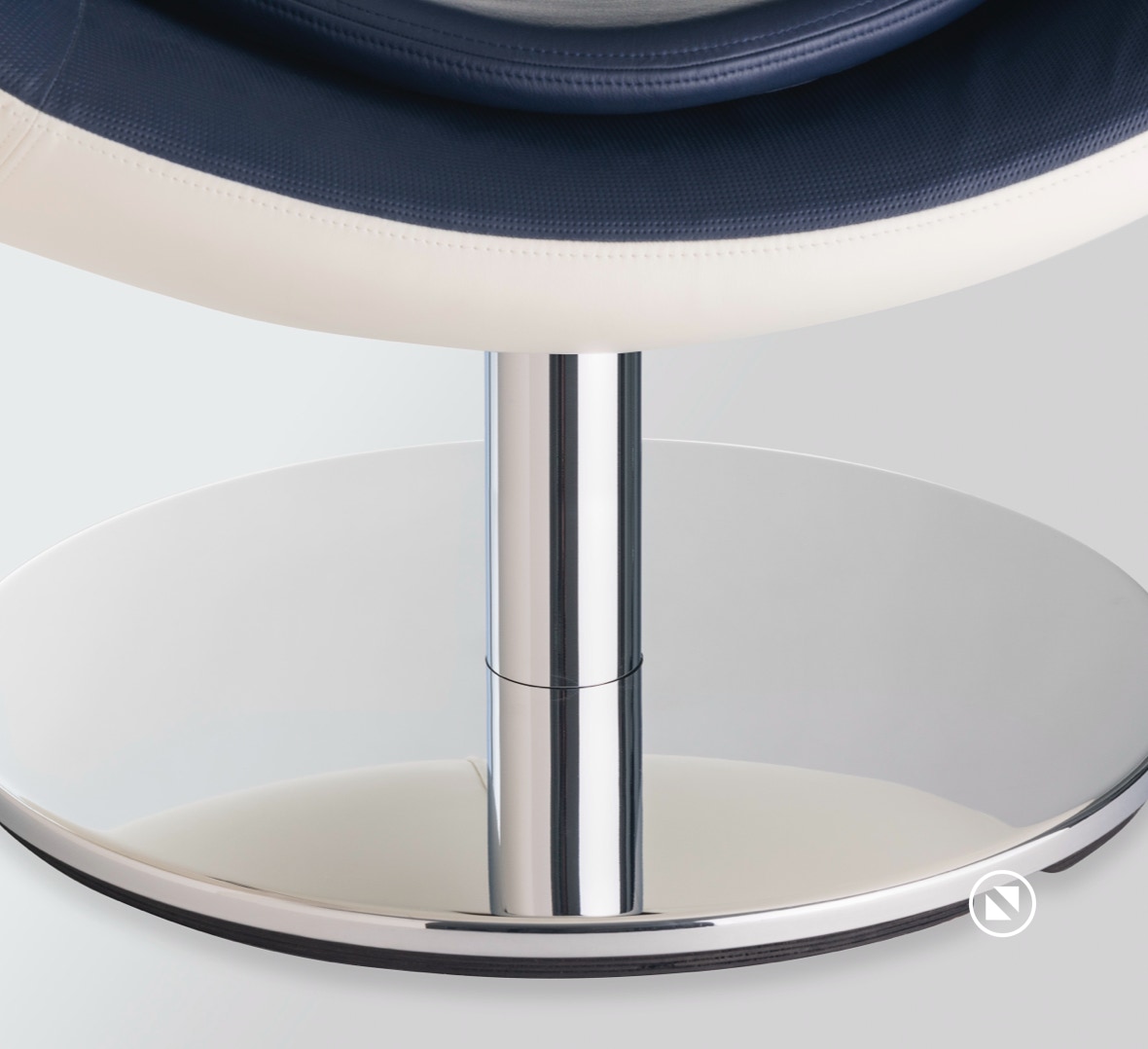

The visible metal parts of your sonic chair are chrome-plated by hand in the traditional way. All parts are copper-plated, hand-polished, nickel-plated and then chrome-plated in a four-stage process. The elaborate process guarantees a high-quality surface finish and durability.


Up to six layers of selected wood species are glued together to form a ring-shaped body of sound which, with 32 litres of loudspeaker volume, forms the foundation for a powerfully balanced sound.

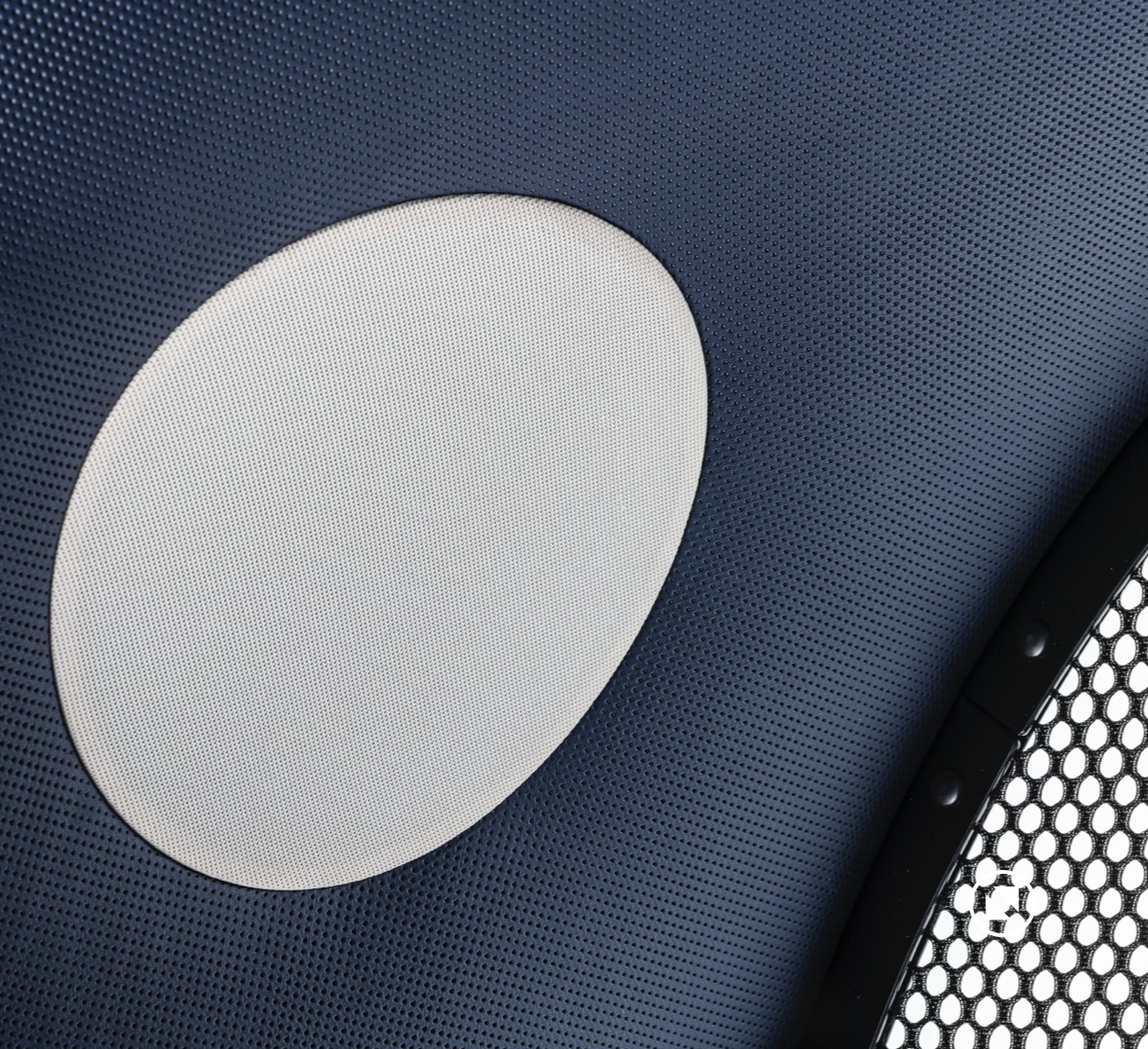

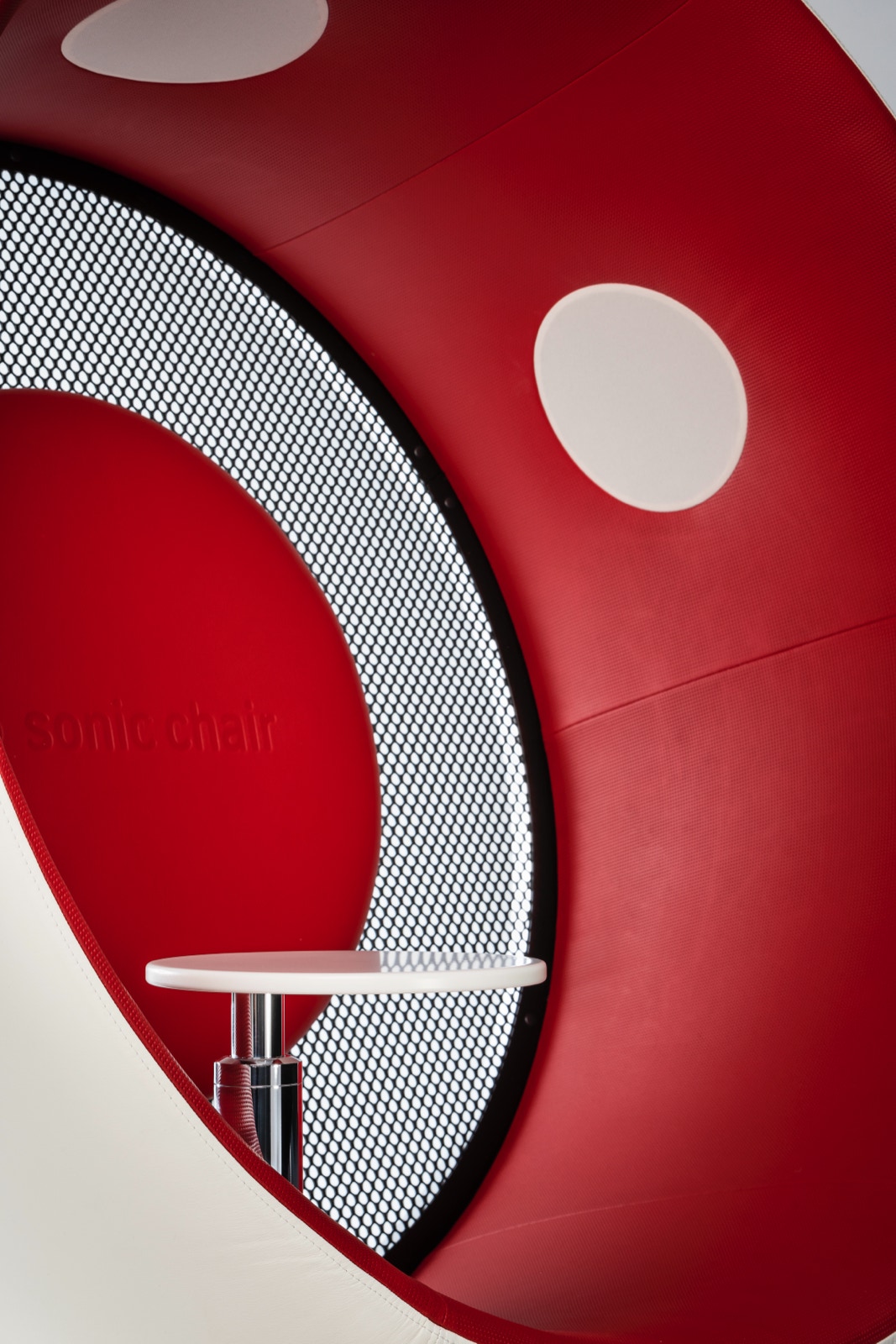

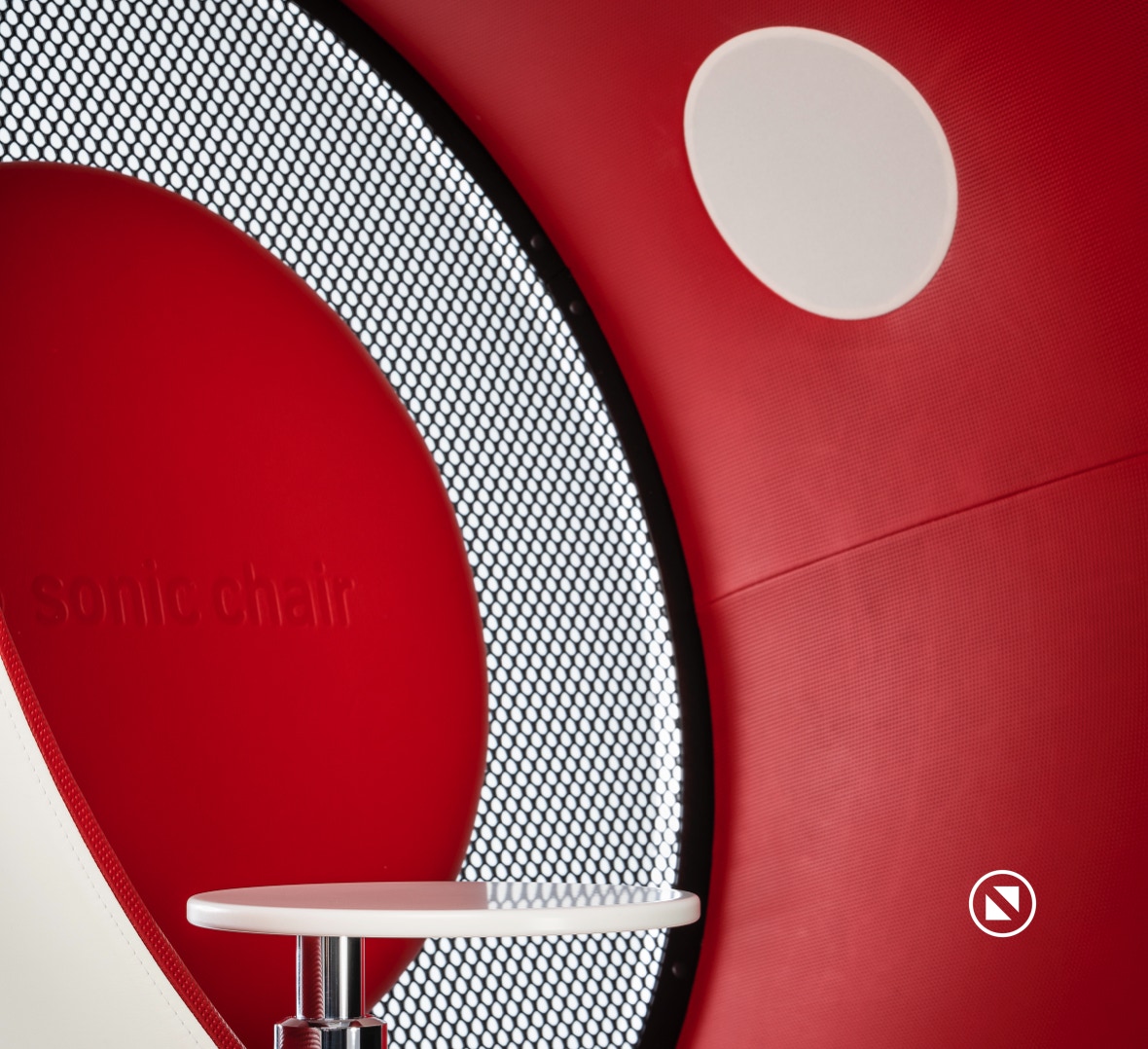

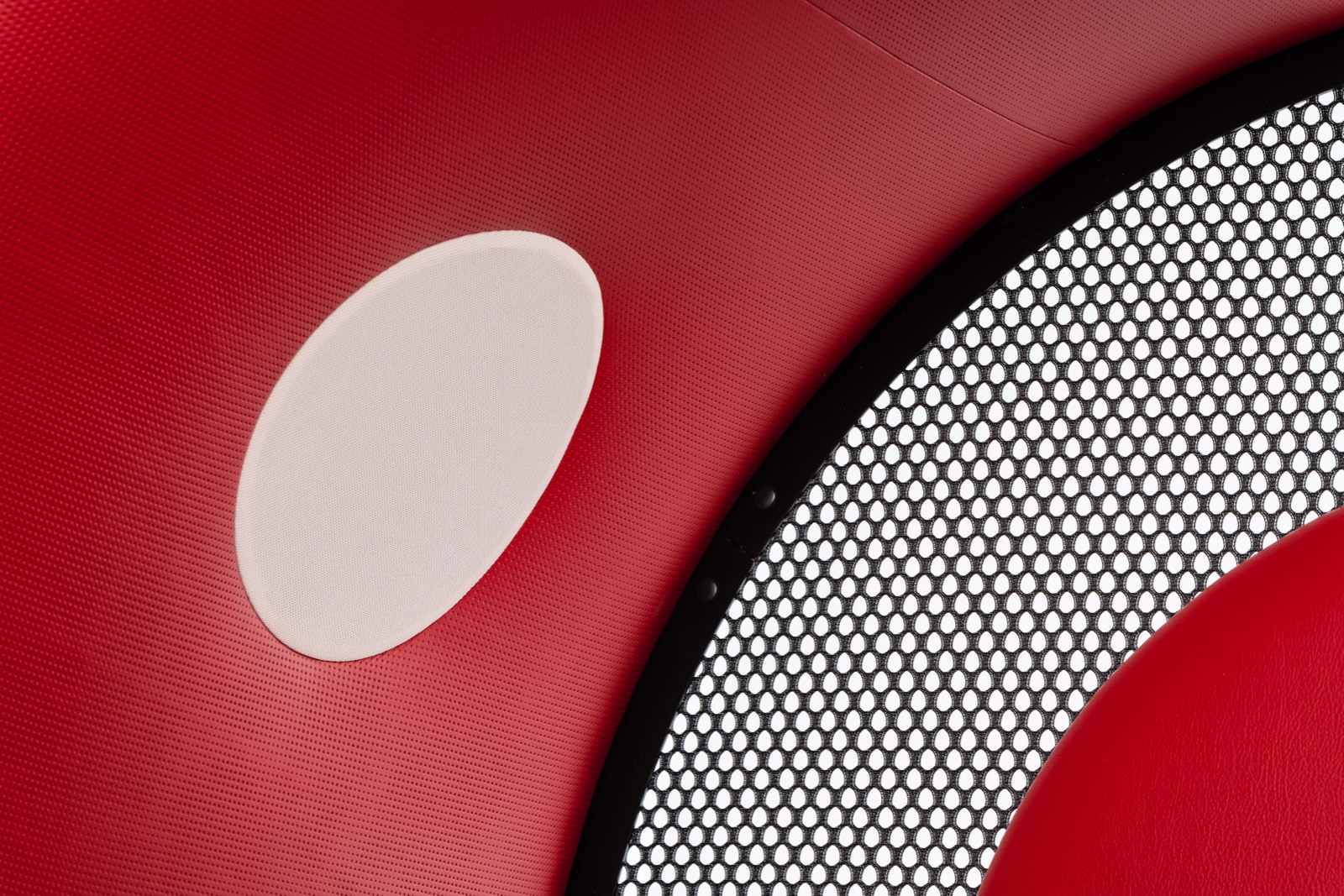

A precisely measured and finely tuned filter design between five high-quality loudspeakers and two structure-borne sound transducers, controlled by a digital signal processor (DSP), creates a perfect sound experience in the acoustic near field of the listener. Regardless of the room acoustics, you are always sitting in the sweet spot. Supported by our VirtualBass® technology, you experience the sound like at a live concert - without disturbing the surroundings.


Last but not least, the sonic chair was awarded one of the world's most important design prizes, the "Red Dot Design Award", by an internationally renowned jury of experts. It was also nominated for the "Design Award of the Federal Republic of Germany“.
